Ruckus ICX 7450 Switch Hardware Installation Guide 39
Part Number: 53-1003899-09

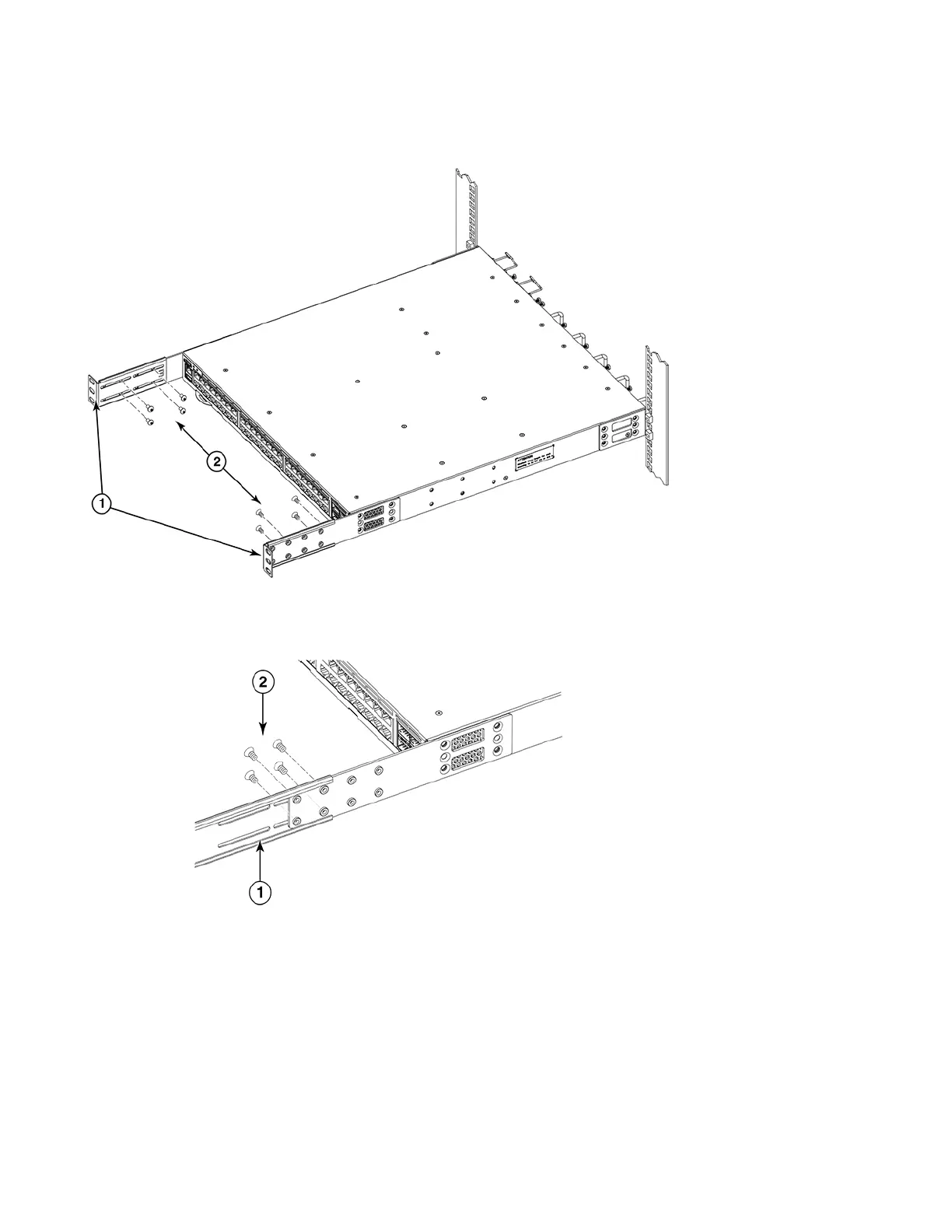

FIGURE 28 Attaching the rear brackets to the extensions at the front of the device
FIGURE 29 Attaching the medium or long rear brackets to the extensions
Attaching the rear brackets to the front rack posts
Complete the following steps to attach the rear brackets to the front rack posts.
1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as shown in
Figure 30. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts. Use the upper and
lower holes in the bracket.
1 Rear brackets, short 2 Screws, 6-32 x 1/4-in., panhead Phillips
1 Rear bracket, medium or long 2 Screws, 6-32 x 1/4-in., panhead Phillips
