Commtest Instruments vb Series User Manual

Section 10: Balancing Walk-through
150

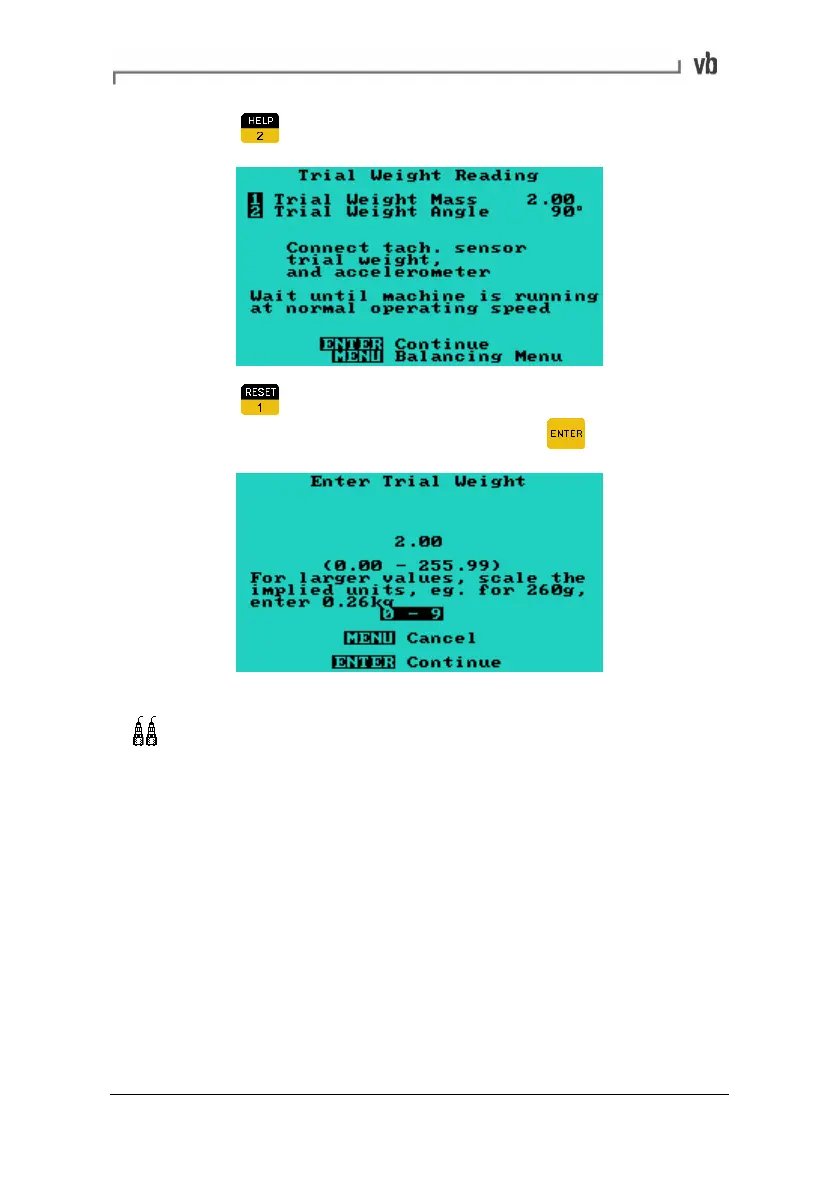

• Press to access the Trial Weight Reading Menu.
• Press to enter your own Trial weight mass. Use the
number keys to enter a value then press
to continue.
The Left Trial Reading Menu replaces the Trial Weight
Reading Menu for dual plane balancing.
