Commtest Instruments vb Series User Manual

Section 3: Onsite Analysis - Measurement Menu
42
To store the measurement see Storing Measurements (page 54).
Note: In free run mode with peak hold averaging, the instrument will
continue sampling and displaying the peak values for each spectral
line.
Tips:
With the spectrum displayed press
or to move the cursor
and check the frequency of any resonance peaks found.
Press
then to clear the spectrum.
Setting your own parameters
Option
Custom Setup allows you to customize this menu to use
your own settings instead of the factory defaults. See Custom Setups
(page
57) for more information.
7. Coast-down/Run-up Recordings
Coast-down and run-up recordings involve taking a series of
recordings with a short delay between them. This technique can be
used to study the resonance behavior of a machine as its speed
gradually increases during power-up or decreases during coast-
down.

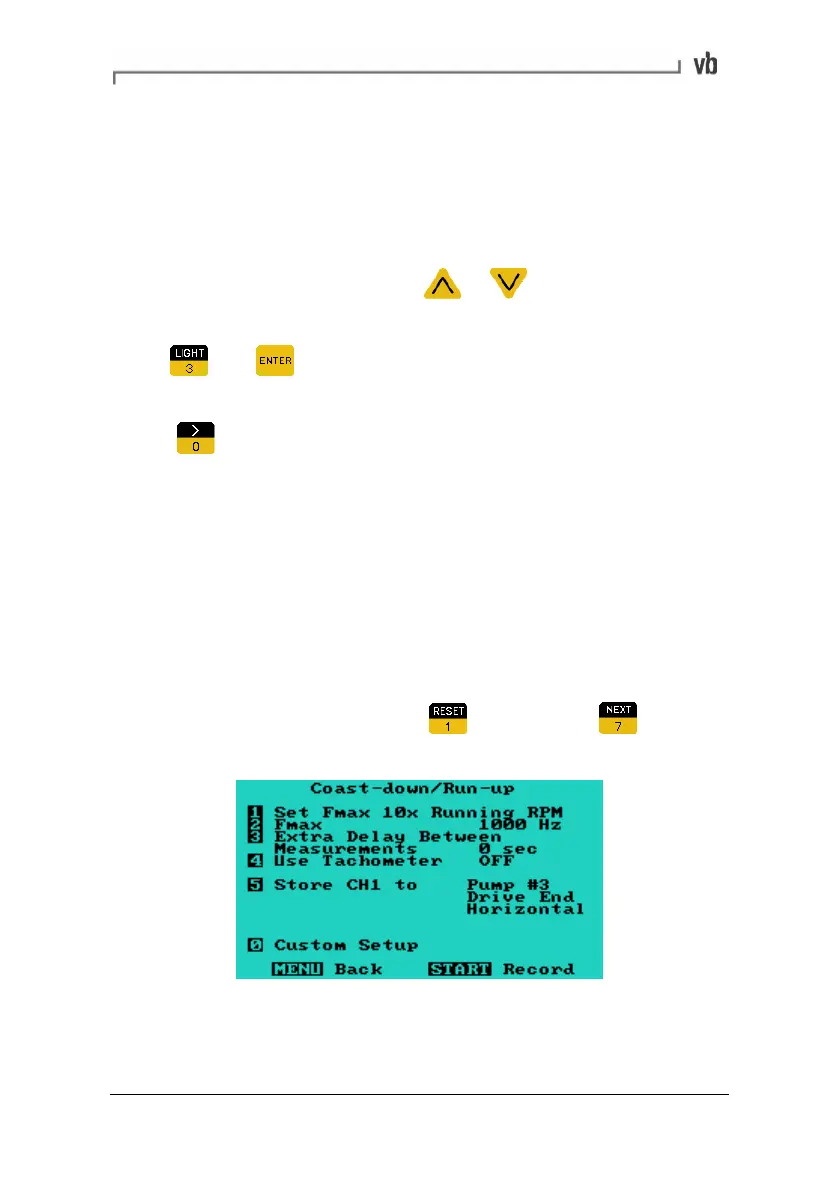

• From the Main Menu press
Measure then to
display the Coast-Down/Run-Up Menu.
