NBLB2 Service Manual
13. Removing the Motherboard
To remove the motherboard, first remove the logic upper, and LED board as
described in the preceding sections. Then follow the steps below:

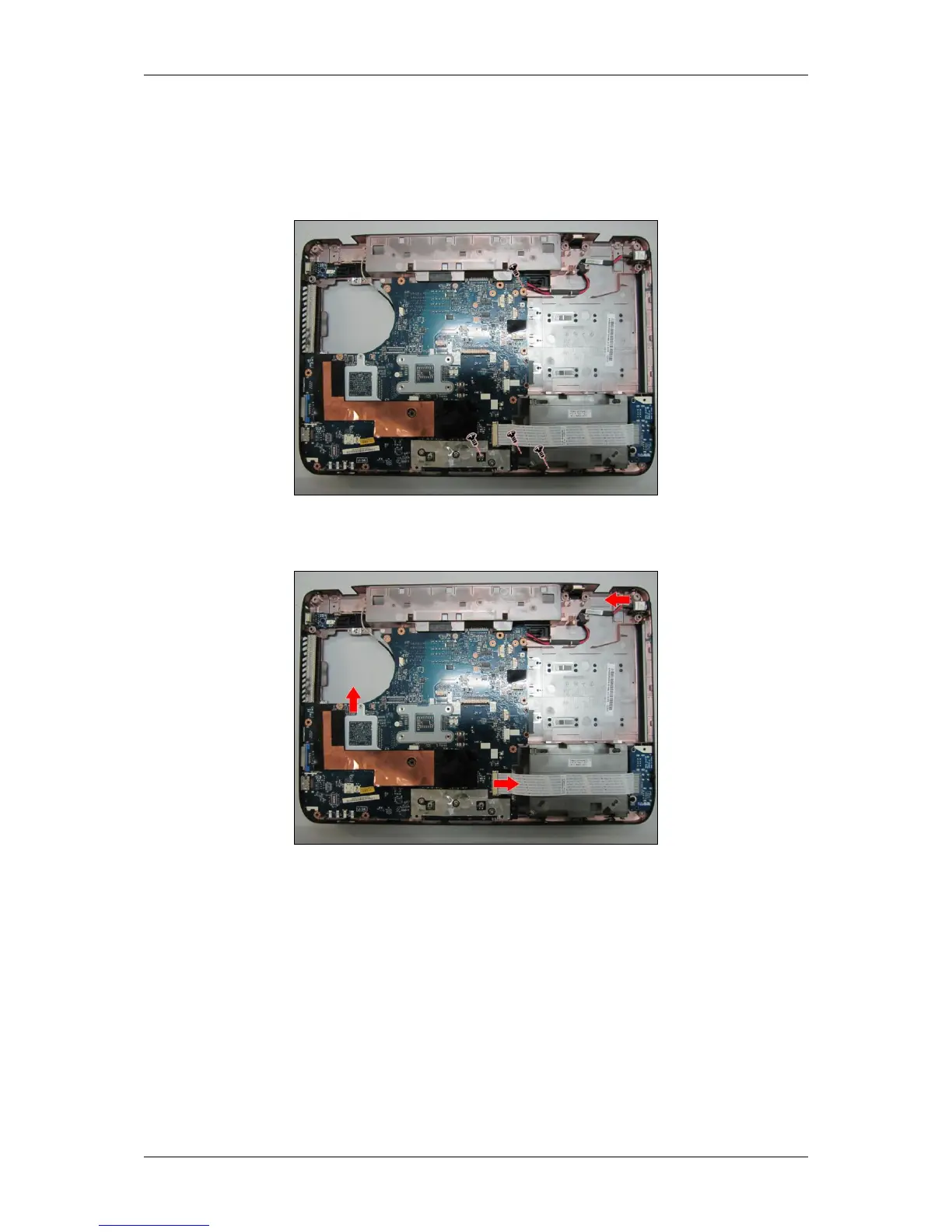

1. Remove four screws securing the motherboard to the logic upper.
2. Disconnect the USB board FFC. Remove the DC-IN socket from its
housing and lift out the motherboard.
