NBLB2 Service Manual
61
 Major Sub-assembly Specification
 System interconnection (For NBLB2)

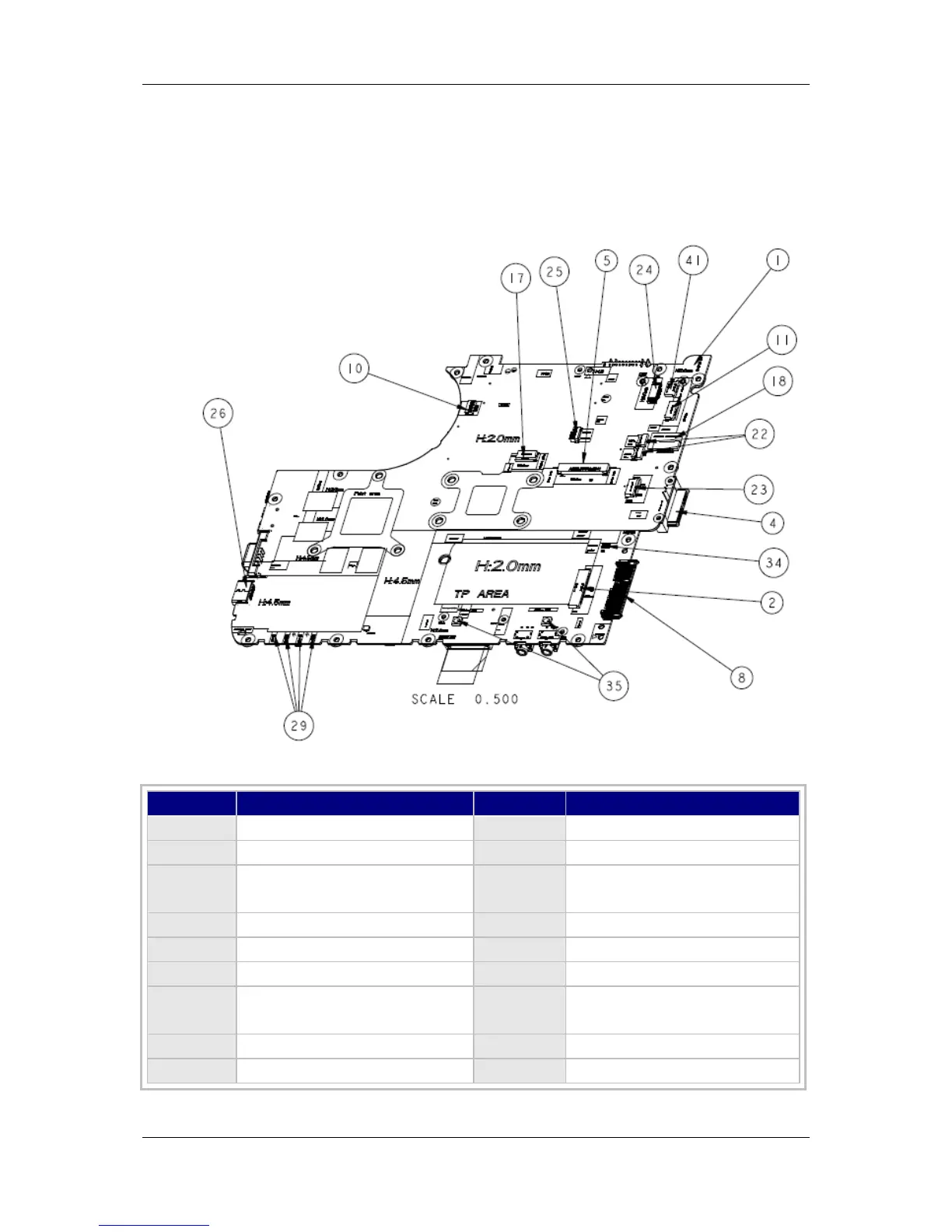

1. Top View
Position
Description
Position
Description
1
MB PCB
22
INTERNAL MIC
2
IO BOARD CONNECTOR
23
FP CONNECTOR
4
ODD CONNECTOR
24
CONDUCTIVE BOARD
CONNECTOR
5
KB CONNECTOR
25
SPEAKER CONNECTOR
8
SATA HDD CONNECTOR
26
HDMI CONNECTOR
10
USB BOARD CONNECTOR
29
LED
11
POWER BOARD
CONNECTOR
34
DISABLE SWITCH
17
TP CONNECTOR
35
MICRO SWITCH
18
BLUETOOTH CONNECTOR
41
LED BOARD CONNECTOR
