NBLB2 Service Manual
12. Removing the Logic Upper
To remove the logic upper, first remove the battery pack, HDD, memory
module, ODD, keyboard, power board, wireless LAN, system fan, thermal
module, CPU, Bluetooth module, and LCD module as described in the
preceding sections. Follow the steps below to remove the logic upper.

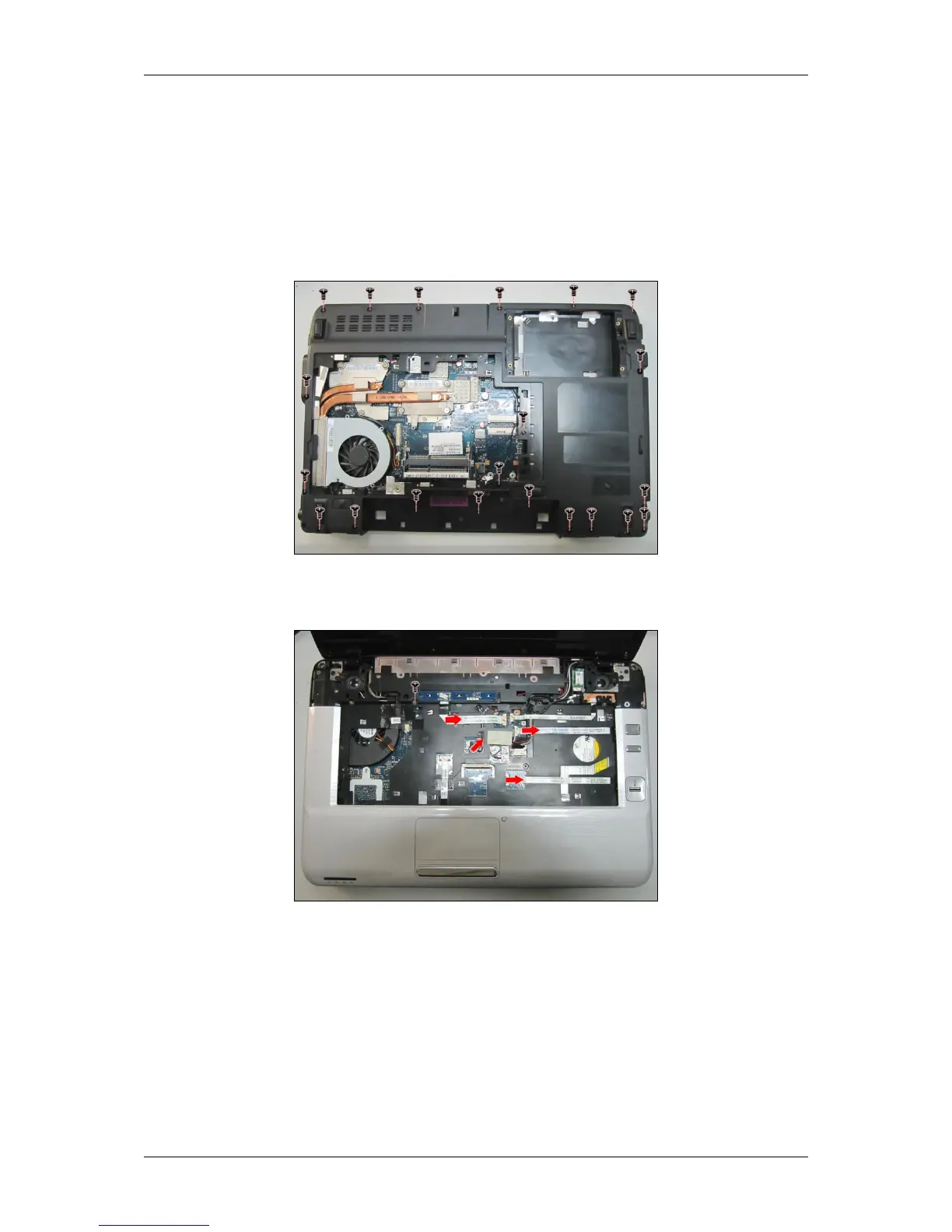

1. Turn the computer upside down and remove 21 screws from the bottom
side of the notebook.
2. Turn the computer over again and disconnect all the board FFC, touchpad
as shown.
