Compaq 1000 Series - Starting the UPS

2-8 Compaq 1000 Series UPS Operation and Reference Guide
4. Replace the connector block in the REPO port.
REMOTE
POW
ER OFF
R
E
M
O
T
E
P
O
W
E
R
O
F
F

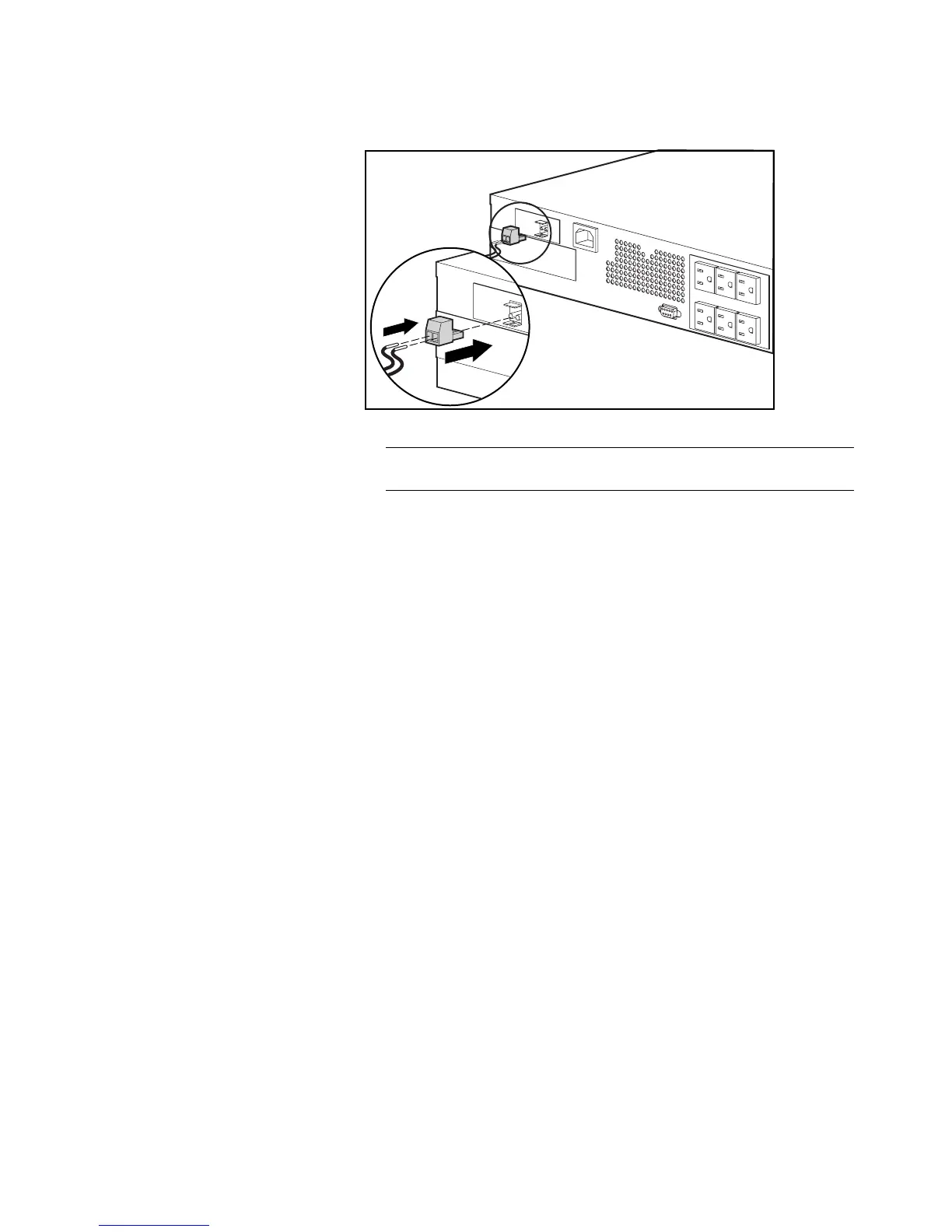

Figure 2-4. Replacing the connector block
IMPORTANT: The remote switch must be in the OFF (open) position to enable power to
the output receptacles.
Starting the UPS
Starting the UPS for the first time requires the following procedures:
■ Checking the Battery Recharge Date label on the UPS shipping carton
■ Connecting the UPS to utility power via the input power cord
■ Connecting devices to the UPS
■ Powering up the UPS
■ Monitoring the automatic self-test to verify that the installation was
successful
