5.6.4 KEYBOARD/POINTING DEVICE INTERFACE CONNECTOR
The legacy model provides separate PS/2 connectors for the keyboard and pointing device. Both
connectors are identical both physically and electrically. Figure 5-7 and Table 5-14 show the
connector and pinout of the keyboard/pointing device interface connectors.

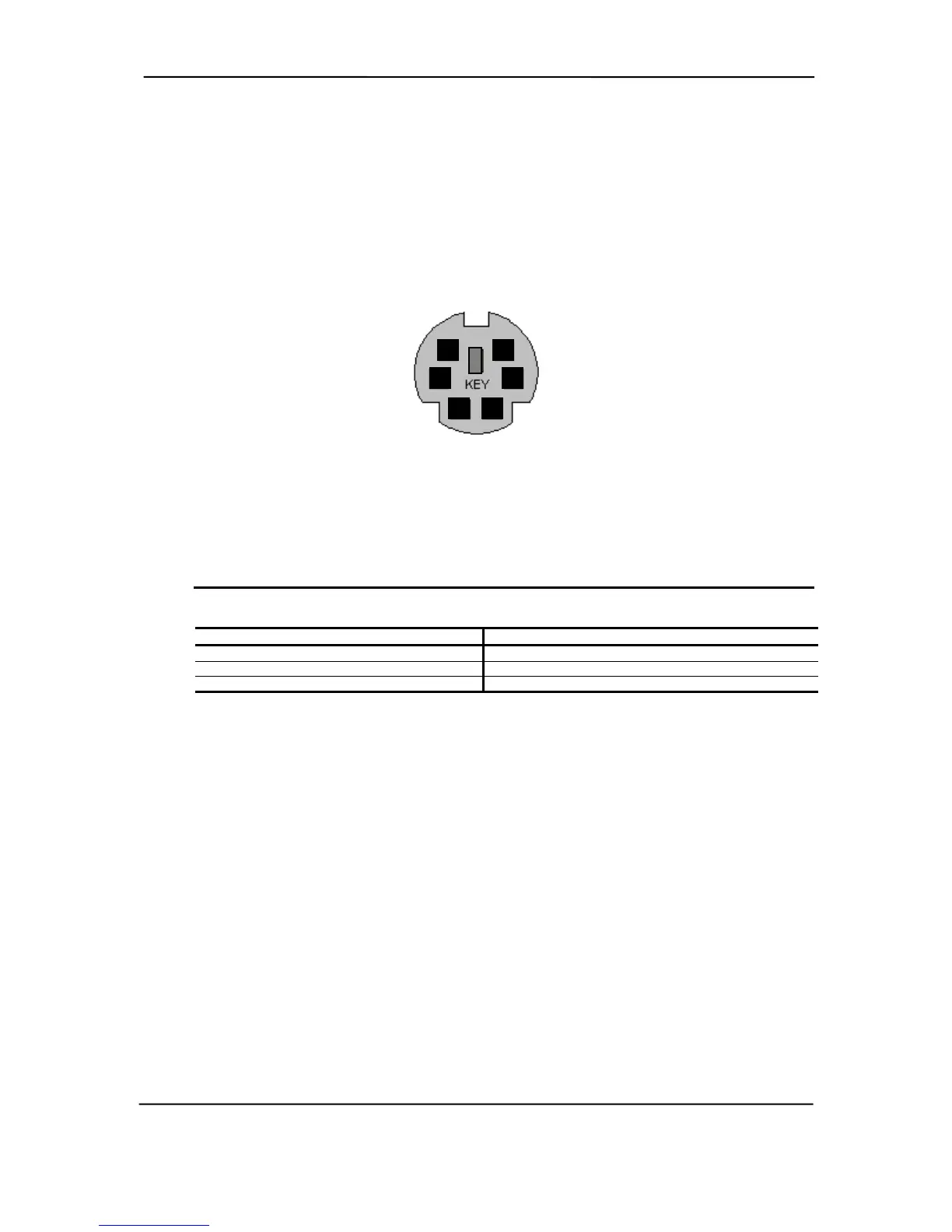

Figure 5-7. Keyboard or Pointing Device Interface Connector
(as viewed from rear of chassis)
Table 5–14. Keyboard/Pointing Device Connector Pinout
Table 5-17.
Keyboard/Pointing Device Connector Pinout
Pin Signal Description Pin Signal Description
1 DATA Data 4 + 5 VDC Power
2 NC Not Connected 5 CLK Clock
3 GND Ground 6 NC Not Connected
6
5
2
4
3
1
