Chapter 2 System Overview
Compaq iPAQ Series of Desktop Personal Computers
Second Edition – February 2001
2-4
2.3 MECHANICAL DESIGN
The Compaq iPAQ Internet Device uses a minitower form factor featuring a smaller footprint and
reduced height than previous minitowers, allowing easy floor or desktop positioning. Commonly
used audio and USB connections are accessible from the front panel.
NOTE: The following information is primarily for identification purposes only. For
detailed information on servicing these systems refer to the applicable service guides.
Most components of iPAQ 1.0/1.2 and 2.0 systems are not inter-changeable.
2.3.1 CABINET LAYOUTS
2.3.1.1 Front Views
Item Description
1 Power Button
2 Power LED
3 Hard drive activity LED
4 MultiBay device bay (accepts 5.25”/12.7 mm storage device)
5 Microphone In Jack
6 Headphone Out Jack
7 USB port (through-Hub)
8 USB port (through-Hub)
9 Multibay device eject button

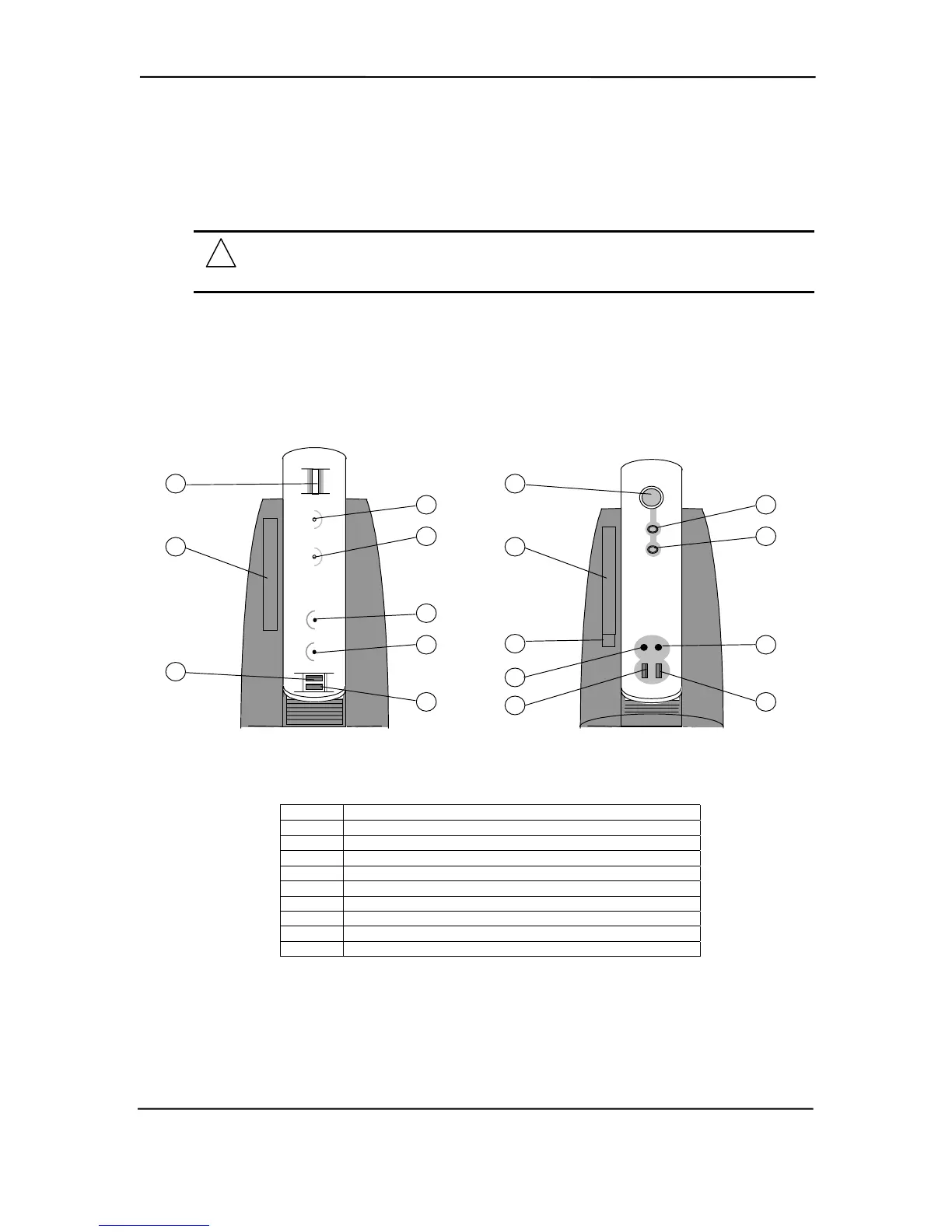

Figure 2–2. Compaq iPAQ Desktops, Front Views
1
2
3
5
6
4
7
8
iPAQ 1.0/1.2
1
2
3
5
6
4
7
8
iPAQ 2.0
9
