Compaq iPAQ 1.0 User Manual

Chapter 2 System Overview
Compaq iPAQ Series of Desktop Personal Computers
Second Edition – February 2001
2-8
2.3.3 SYSTEM BOARD LAYOUTS
Compaq iPAQ 1.0 and 1.2 systems use a FlexATX-type (9.0 x 7.5 inch) system board in one of
two variations; a legacy board or a legacy-free board (Figure 2-6).
Item Description Item
1 USB ports 3 and 4 (front panel) header 12 USB ports 0, 1, 2 connectors
2 Battery 13 Dual PS/2 conn.: (mouse, keyboard)
3 BIOS ROM configuration jumper 14 Serial I/F header
4 Speaker connector 15 PGA370 processor socket
5 Audio microphone/headphone header 16 DIMM sockets
6 Audio line out jack 17 Processor (boxed) fan header
7 Audio line in jack 18 IDE (pri.) 40-pin connector
8 Network connector 19 IDE (sec.) 50-pin (multibay) connector
9 VGA monitor connector 20 Power button/LED indicator connector
10 Parallel I/F connector 21 CD audio header
11 Serial I/F connector 22 Power supply connector
NOTE:
Refer to Chapter 7 “Power and Signal Distribution” for header pinouts.

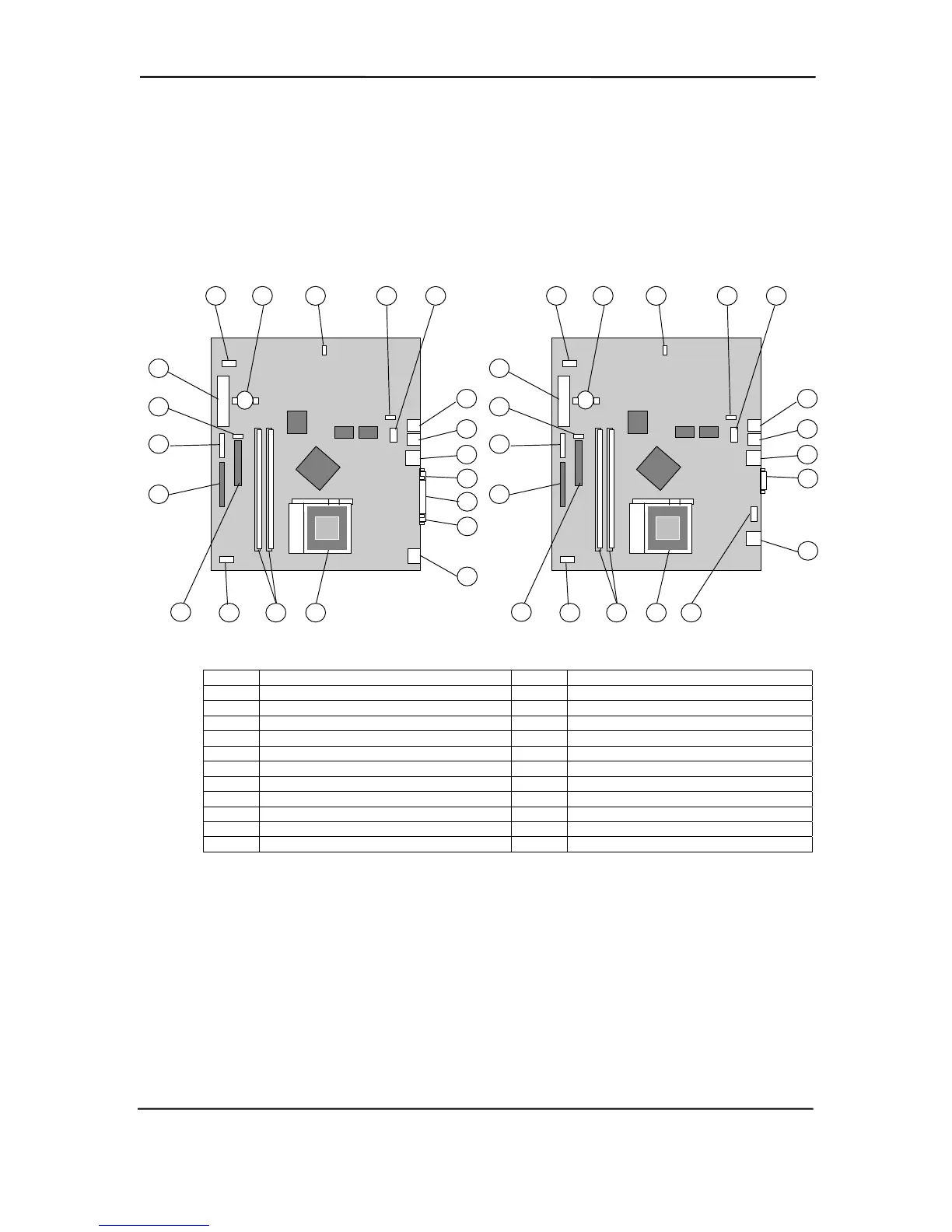

Figure 2–6. Compaq iPAQ 1.0/1.2 System Board Layouts
Legacy PCA# 161014
19
21
20
22
13
17 1516
5
6
7
3
10
7
1 2 4
9
8
11
18
Legacy-Free PCA# 161015
19
21
20
22
12
17
14
1516
5
6
7
3
7
1 2 4
9
8
18
