Compaq iPAQ 1.0 User Manual

Chapter 5 Input/Output Interfaces
5-36 Compaq iPAQ Series of Desktop Personal Computers
Second Edition – February 2001
5.9.4.3 RJ-45 Connector

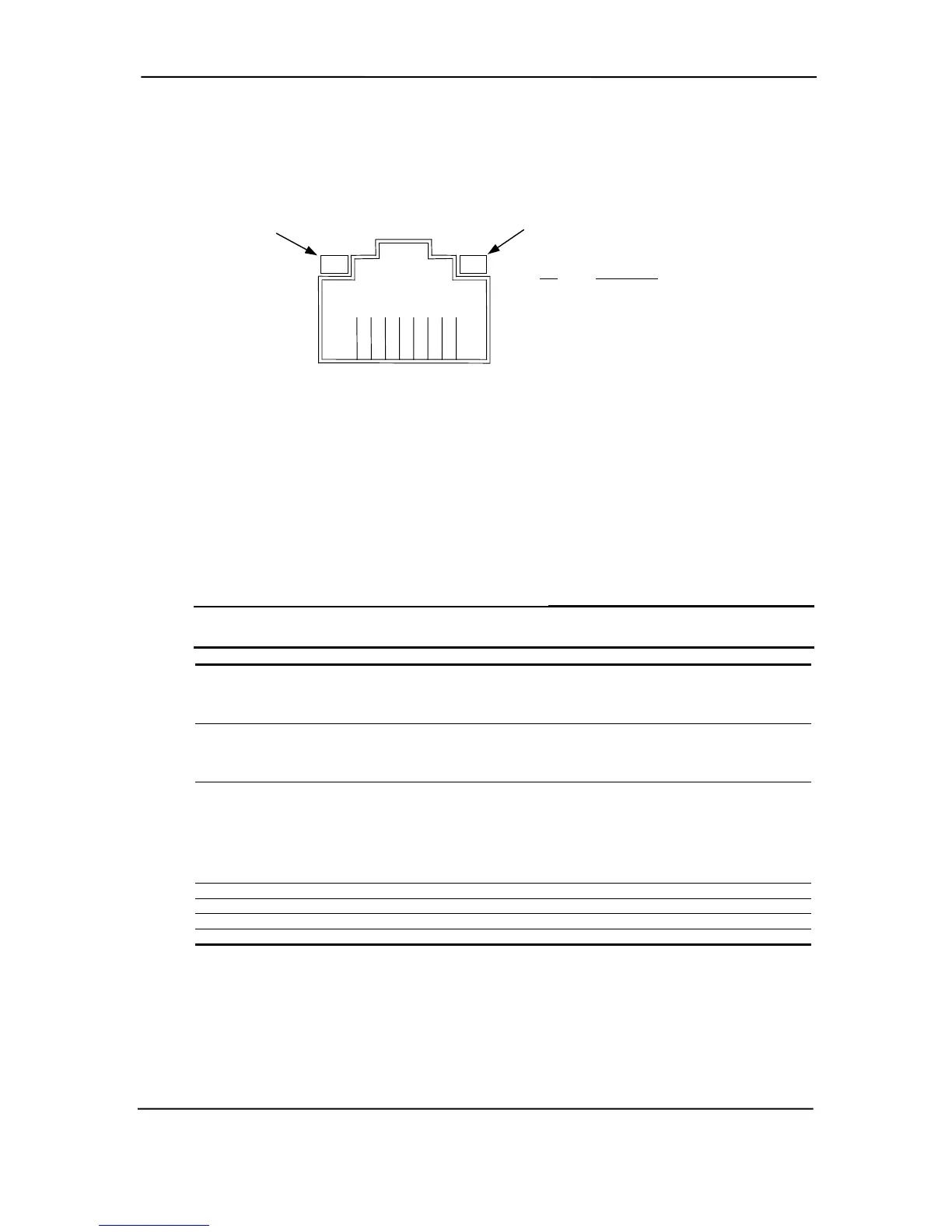

Figure 5-15 shows the RJ-45 connector used for the NIC interface. This connector includes the two
status LEDs as part of the connector assembly.
Figure 5-15. Ethernet TPE Connector (RJ-45, viewed from card edge)
5.9.4.4 825xx NIC Specifications
Table 5–25. 825xx NIC Operating Specifications
Table 5-25.
825xx NIC Specifications
Parameter
Modes Supported 10BASE-T half duplex @ 10 MB/s
10Base-T full duplex @ 20 MB/s
100BASE-TX half duplex @ 100 MB/s
100Base-TX full duplex @ 200 MB/s
Standards Compliance IEEE VLAN (802.1A)
IEEE 802.2
IEEE 802.3 & 802.3u
IEEE Intel priority packet (801.1p)
OS Driver Support MS Windows 95,98, 2000, Me
MS Windows NT 3.51 & 4.0
Novell Netware 3.11, 3.12, & 4.1x; 5 Server
Sunsoft Solaris
SCO UnixWare
Open Desktop
OpenServer
Boot ROM Support Intel PRO/100 Boot Agent (PXE 2.0, RPL)
F12 BIOS Support Yes
Bus Inteface PCI 2.2
Power Management Support APM, ACPI, PCI Power Management Spec.
12438765
Pin Description
1 Transmit+
2 Transmit-
3 Receive+
6 Receive-
Activity LED
Speed LED
