Chapter 5 Input/Output Interfaces
5-4 Compaq iPAQ Series of Desktop Personal Computers
Second Edition – February 2001
Diskette drive interface not connected.
5.2.3 SECONDARY IDE INTERFACE
The secondary IDE interface supports the Multibay device, which may be an optical storage device
(CD-ROM, DVD, LS-120) or a second hard drive mounted in a Multibay adapter that in turn is
installed in the Multibay. Both iPAQ 1.x and 2.0 systems provide a 68-pin female connector
(mounted on a Multibay board) that mates with the corresponding male connector of the Multibay
device or adapter.

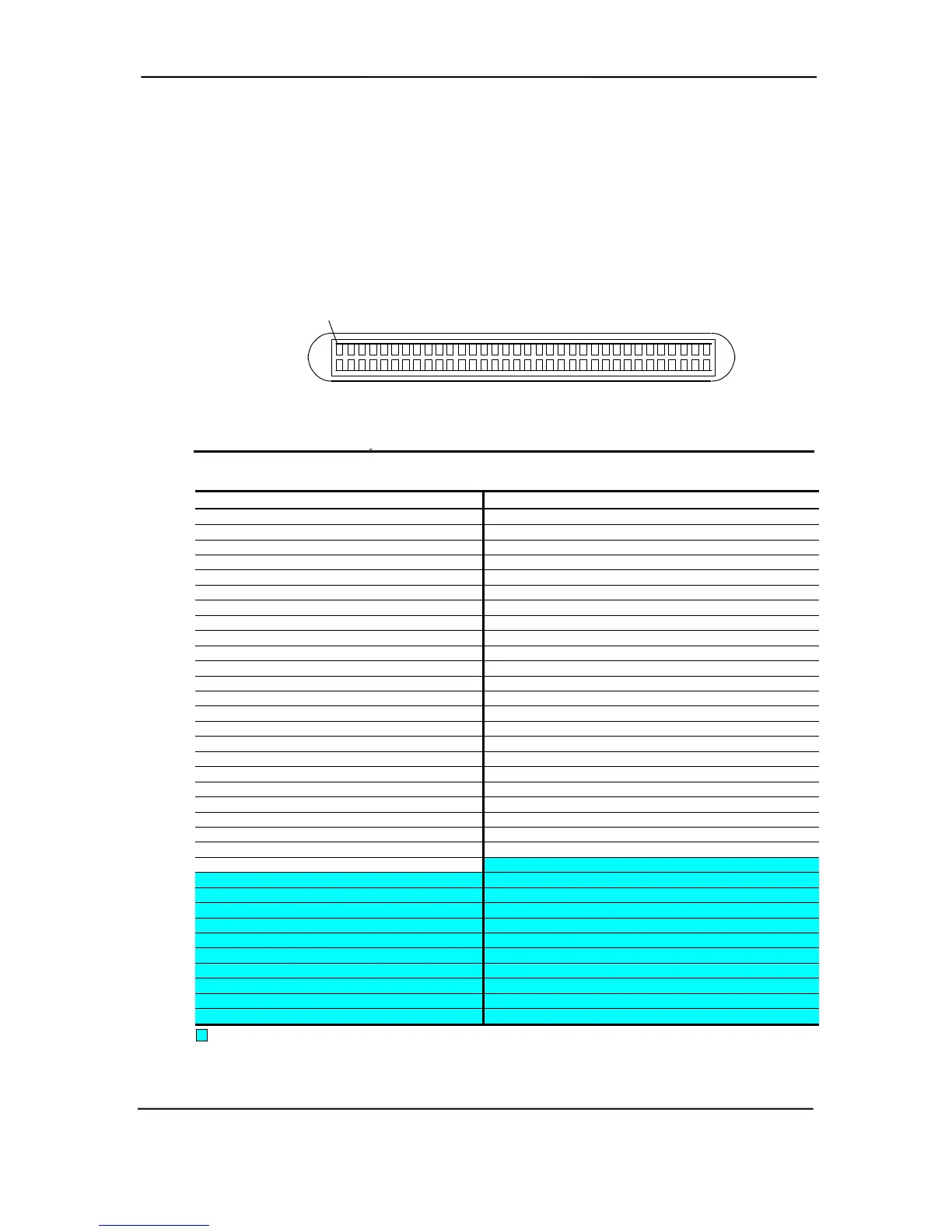

Figure 5-2. 68-Pin Multibay Connector (on Multibay board).
Table 5–4. 68-Pin Multibay Connector Pinout
Table 5-4.
68-Pin Multibay Connector Pinout
Pin Signal Description Pin Signal Description
1 RST- Reset 2 GND Ground
3 DD7 Drive Data Bit <7> 4 DD8 Drive Data Bit <8>
5 DD6 Drive Data Bit <6> 6 DD9 Drive Data Bit <9>
7 DD5 Drive Data Bit <5> 8 DD10 Drive Data Bit <10>
9 DD4 Drive Data Bit <4> 10 DD11 Drive Data Bit <11>
11 DD3 Drive Data Bit <3> 12 DD12 Drive Data Bit <12>
13 DD2 Drive Data Bit <2> 14 DD13 Drive Data Bit <13>
15 DD1 Drive Data Bit <1> 16 DD14 Drive Data Bit <14>
17 DD0 Drive Data Bit <0> 18 DD15 Drive Data Bit <15>
19 GND Ground 20 (key) No connection
21 DREQ DMA request 22 GND Ground
23 IOW Drive I/O Write 24 GND Ground
25 IOR Drive I/O Read 26 GND Ground
27 IORDY I/O Channel Ready 28 CSEL Cable select
29 DACK DMA Acknowledge 30 GND Ground
31 IRQ Interrupt request 32 GND Ground
33 DA1 Drive address bit <1> 34 PDIAG Passed diagnostics
35 DA0 Drive address bit <0> 36 DA2 Drive address bit <2>
37 CS1 Chip select 1 38 CS3 Chip select 3
39 DASP- Drive activity/drive 1 prsnt. 40 GND Ground
41 Vcc +5 VDC logic power 42 MTR PWR +5 VDC motor power
43 GND Ground 44 AUD L Left audio
45 GND Left audio ground 46 GND Right audio ground
47 AUD R Right audio 48 INDEX- Index
49 Vcc +5 VDC 50 DRVSEL Drive select
51 DSKCHG Disk change 52 GND Ground
53 DEN ID Media identification 54 MTR ON- Motor On
55 LOWDEN- Density select 56 DIR- Direction in
57 STEP- Step 58 DEV PRST System device present
59 WDATA- Write data 60 GND Ground
61 WGATE- Write gate 62 TRK0- Track 00
63 GND Ground 64 WPROT- Write protect
65 GND Ground 66 RDATA- Read data
67 GND Ground 68 HDSEL- Head (side one) select
