Compaq iPAQ 1.0 User Manual

Technical Reference Guide
Compaq iPAQ Series of Desktop Personal Computers
Second Edition - February 2001
2-5

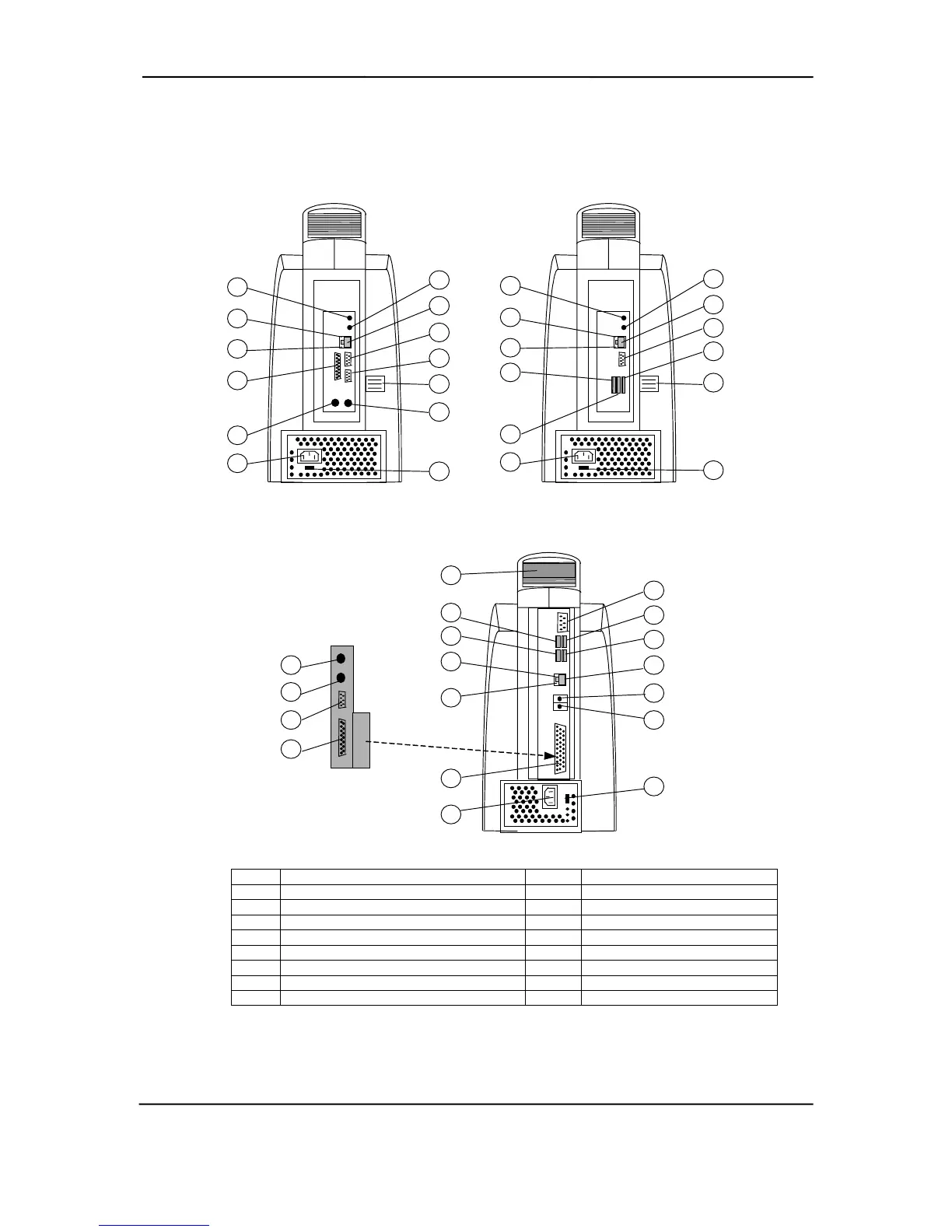

2.3.1.2 Rear Views
Item Description Item Description
1 Audio line output 2 Audio line input
3 Network activity LED indicator 4 Network I/F jack
5 Network speed LED indicator 6 VGA monitor connector
7 Parallel I/F connector 8 Serial I/F connector
9 USB port: a) direct, b) through-hub 10 MultiBay device eject button
11 PS/2 mouse connector 12 PS/2 keyboard connector
13 AC line in connector 14 Line voltage select switch
15 Legacy module connector 16 Carrying depression
NOTE: [1] Dedicated-direct USB port.
Figure 2–3. Compaq iPAQ Desktops, Rear Views
1
5
7
3
11
13
6
4
2
8
10
12
14
IPAQ 1.0/1.2 Legacy
1
5
3
13
6
4
2
10
14
IPAQ 1.0/1.2 Legacy-Free
9b
9a
9b
Legacy Module for
iPAQ 2.0
11
12
8
7
iPAQ 2.0
1
5
3
13
4
2
15
14
6
9a
9b
9a
9b
[1]
16
