Technical Reference Guide
Compaq iPAQ Series of Desktop Personal Computers
Second Edition - February 2001
2-9
All iPAQ 2.0 systems use a Compaq-proprietary system board (Figure 2-7).
Item Description
1 Power button
2Battery
3 CMOS clear switch
4 Display cache module connector
5 Password enable jumper
6 Video graphics monitor connector
7 USB connector pairs: a) J111; b) J112
8 Network connector
9 Audio line in jack
10 Audio line out jack
11 Legacy module connector
12 PGA370 processor socket
13 DIMM sockets
14 Power supply connector
15 USB triple connector (center port not used)
16 Microphone in, Headphone out jacks
17 Speaker connector
18 Hard drive activity LED
19 Power LED
20 Hard drive connector (IDE primary)
21 Multibay board connector (IDE secondary)

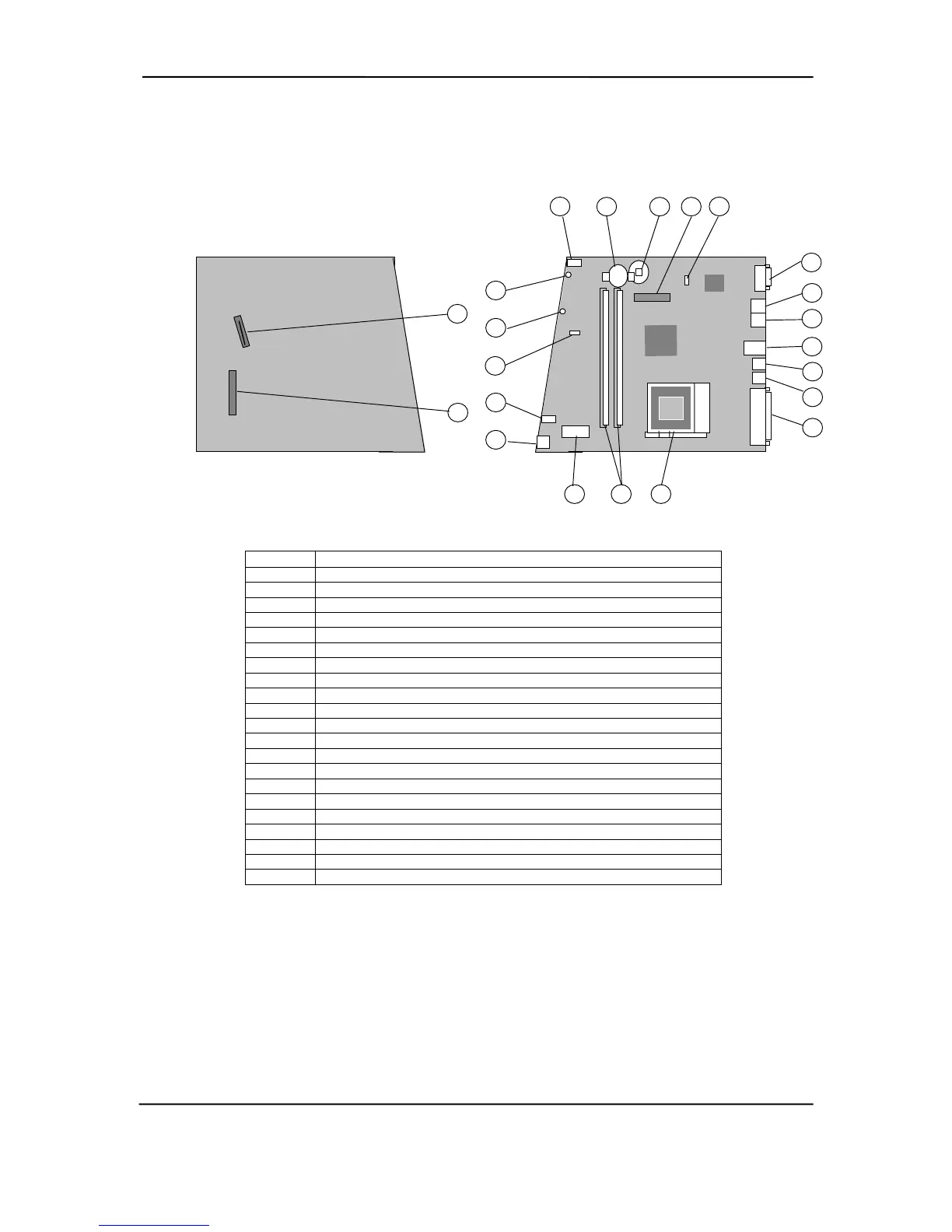

Figure 2–7. Compaq iPAQ 2.0 System Board Layout
PCA# 011010, Component SidePCA# 011010, Solder Side
21
20
16
19
18
17
14 13
53
10
7a
1 2 4
9
8
11
15
12
6
7b
