Conel FLOW - Dimensions and Weight

62
Valve Yes, integrated in the pump switching machine
Shock absorbers Yes, integrated in the pump switching machine
Pressure gauge Yes, integrated in the pump switching machine
3.4 Q/H DIAGRAM CONEL FLOW RAIN-CHAMPION

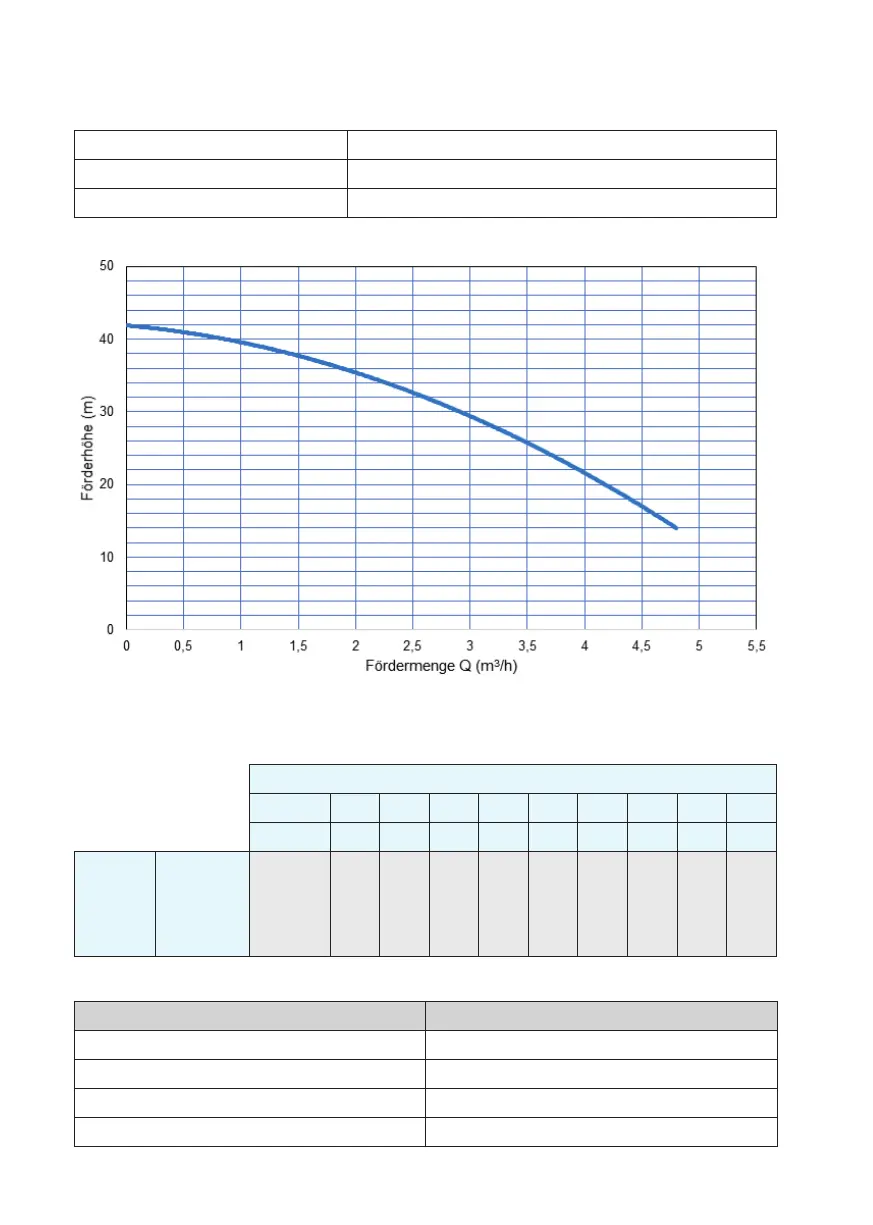

Chart 3.4.1.1 Q/H Chart Conel Flow Rain-Champion
3.4.1 Technical performance data Conel Flow Rain-Champion
Q = Flow rate
m3/h 0.0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8
Art.-No.: Label l/min 0 8.3 16.7 25.0 33.3 41.7 50.0 58.3 66.7
Insert Insert
Head (m)
42.5 40.2 38.2 36.2 33.8 30 24.8 19.5 14
3.5 DIMENSIONS AND WEIGHT CONEL FLOW RAIN-CHAMPION
Property Conel Flow Rain-Champion
Length 555 mm
Height 550 mm
Depth / Width 335 mm
Weight 30 kg (empty)
