Consilium CM2.2 - CFD5000 FDS Subsystem

User Manual 3Fire Detection System
5100606_CFD5000 T - CM2.2_User Manual_T_EN_2023_E
7
•
Mains- and Emergency Power, the external power inputs resulting in the
internal power supply
•
Smoke/heat, safe detection of the fire condition
•
Safe detection of user activation of Manual Call points (MCPs)
•
Inputs
•
Dry relay contacts
•
Fire/fault/disabled outputs signalling the fire, fault and disabled condition for
the FDS System
•
Safety data, sent from CS-Com M via SDTv2 protocol
3.1.2.3 CFD5000 FDS Subsystem
The CFD5000 FDS subsystem is an extension of CCP Fire that shall be used when
safety integrity level 2 is required. The CFD5000 FDS consists of three types of
modules, namely the CS-Safety M, CS-Loop M and CS-Com M.
The loop line consists of a selection of loop unit communicating with each other by
mean of the IDAxt protocol. The loop units that can be attached to the CS-Loop M
are suitable for use in SIL 2 environments as well.

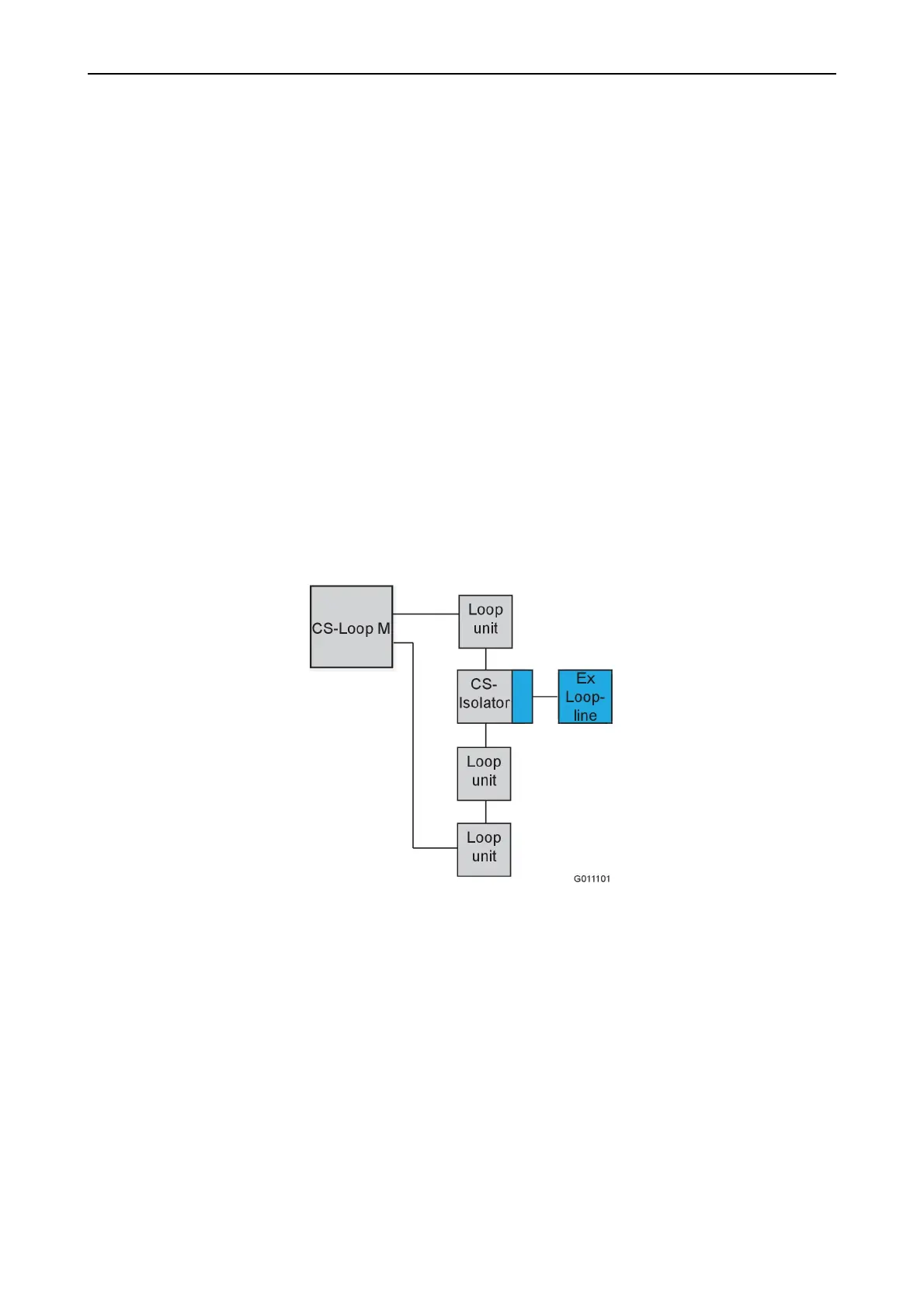

Figure 2. Example of a loop-line configuration with one CS-Loop M module
