Convotherm OEB 10.10 Installation Manual

Technical data, dimensional drawings and connection diagrams
Installation manual 120

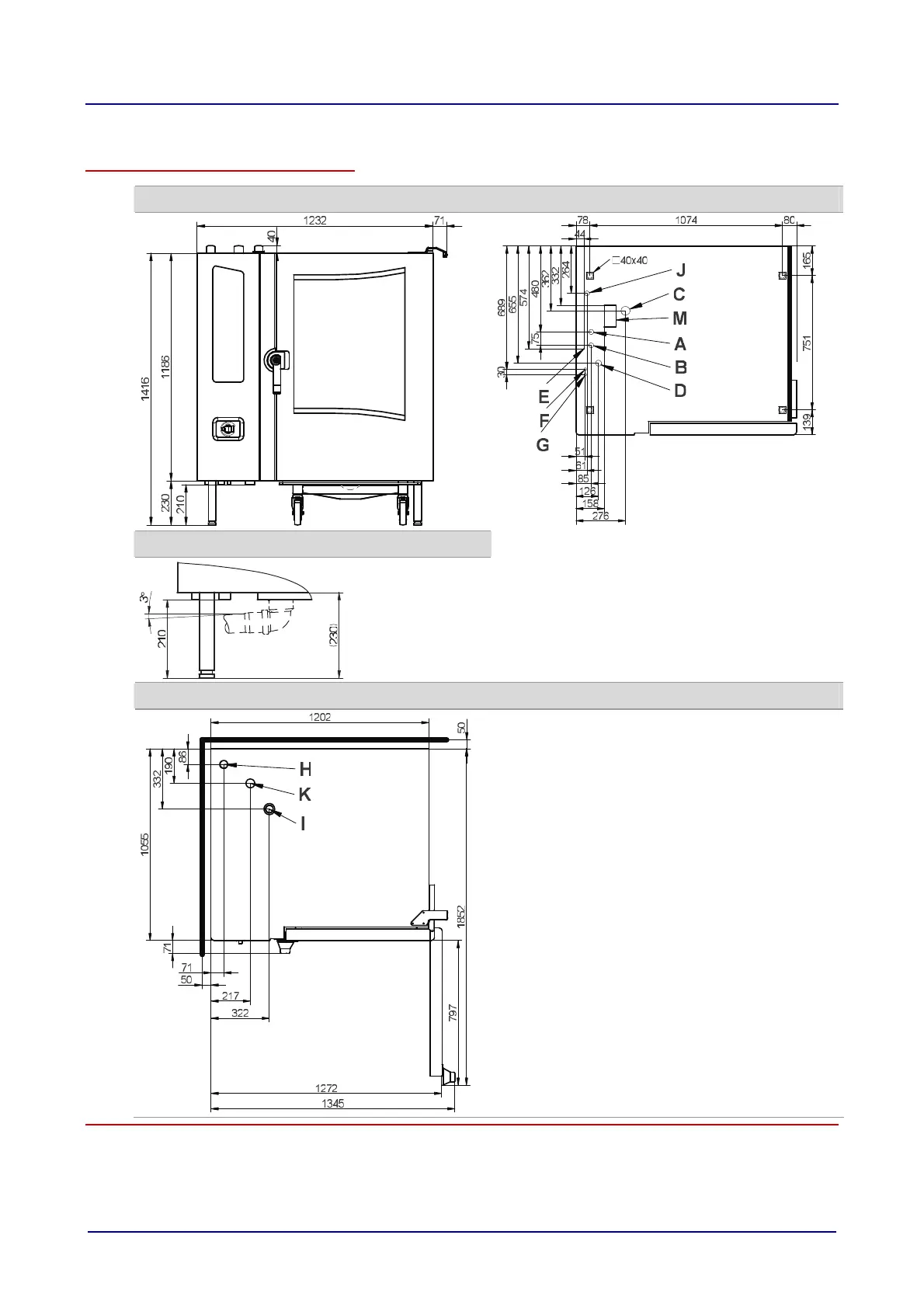

► OGS 12.20
View Connections on the underside
Detailed view of water drain
View from above with wall clearances Meaning of labeled elements
A
Soft water connection G3/4"
S
Cold water connection G3/4"
C
Drain connection DN50
D
Electrical supply
E
Equipotential bonding
F
Rinse agent connection
G
Cleaning agent connection
H
Air vent
I
Low-pressure failsafe device
J
Gas supply
K
Flue gas pipe, gas (convection heater)
M
Overflow 120 x 65

Convotherm OEB 10.10 Specifications

General

Model	OEB 10.10
Capacity	10 x 1/1 GN
Power Supply	Electric
Cooking Modes	Convection, Steam, Combination
Voltage	400 V
Frequency	50/60 Hz
Temperature Range	30°C to 300°C
