► Ship model
Function
On board ship, the combi steamer is fixed to the floor by screws.
Fixing by flanged feet
Caution
If the appliance is fixed by means other than the flanged feet (e.g. by welding), the appliance must be
leveled before fixing.

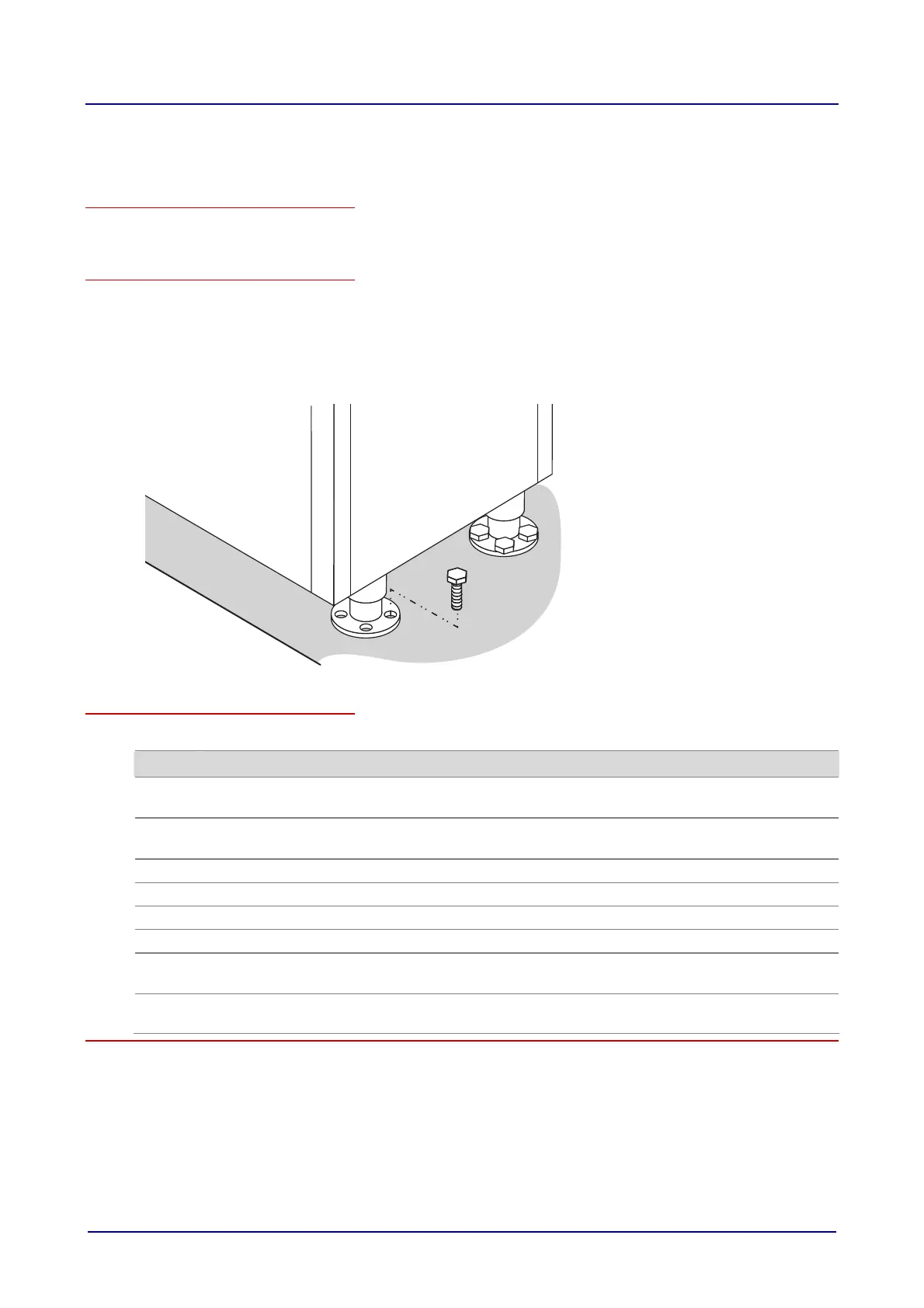

The following diagram shows how you can fix floor-standing appliances or table-top appliances using
the flanged feet:
Fixing to the ship oven-stand
To fix the combi steamer to a ship oven-stand, follow the steps below:
Step Action
1
Table-top appliances:
Using a spirit level, ensure the ship oven-stand is horizontal by adjusting the height of the feet.
2
Table-top appliances:
Align the fixing bracket with the oven stand via the slotted holes and screw it to the oven stand.
3
Fasten the fixing bracket to the floor.
4
Remove the appliance feet with flange plate from the combi steamer.
5
Fit the M8 threaded feet supplied to the base.
6
Place the combi steamer on the oven stand and position the feet over the holes in the oven stand.
7
Floor-standing appliances:
Using a spirit level, ensure the appliance is horizontal by adjusting the height of the feet.
8 Screw the square tubing of the oven stand to the appliance feet from below using the screws, plain
washers and spring washers supplied.
