Connecting up the combi steamer
Installation manual 63
Requirements
Make sure that the following requirements have been met:
The supply flow pressure must be suitable for the appliance. If the measured supply flow pressure
differs from the figures given in the table below, the gas supply company must be notified. The ap-
pliance must not be put into use in this case.
A gas shut-off device must be installed at the customer's premises.
Arrangement using a bank of bottles
To avoid severe icing up of the liquid gas bottles, use a bank of bottles containing at least 2 liquid gas
bottles.
Caution
Protect the flexible gas lines from chemical, thermal and mechanical damage.

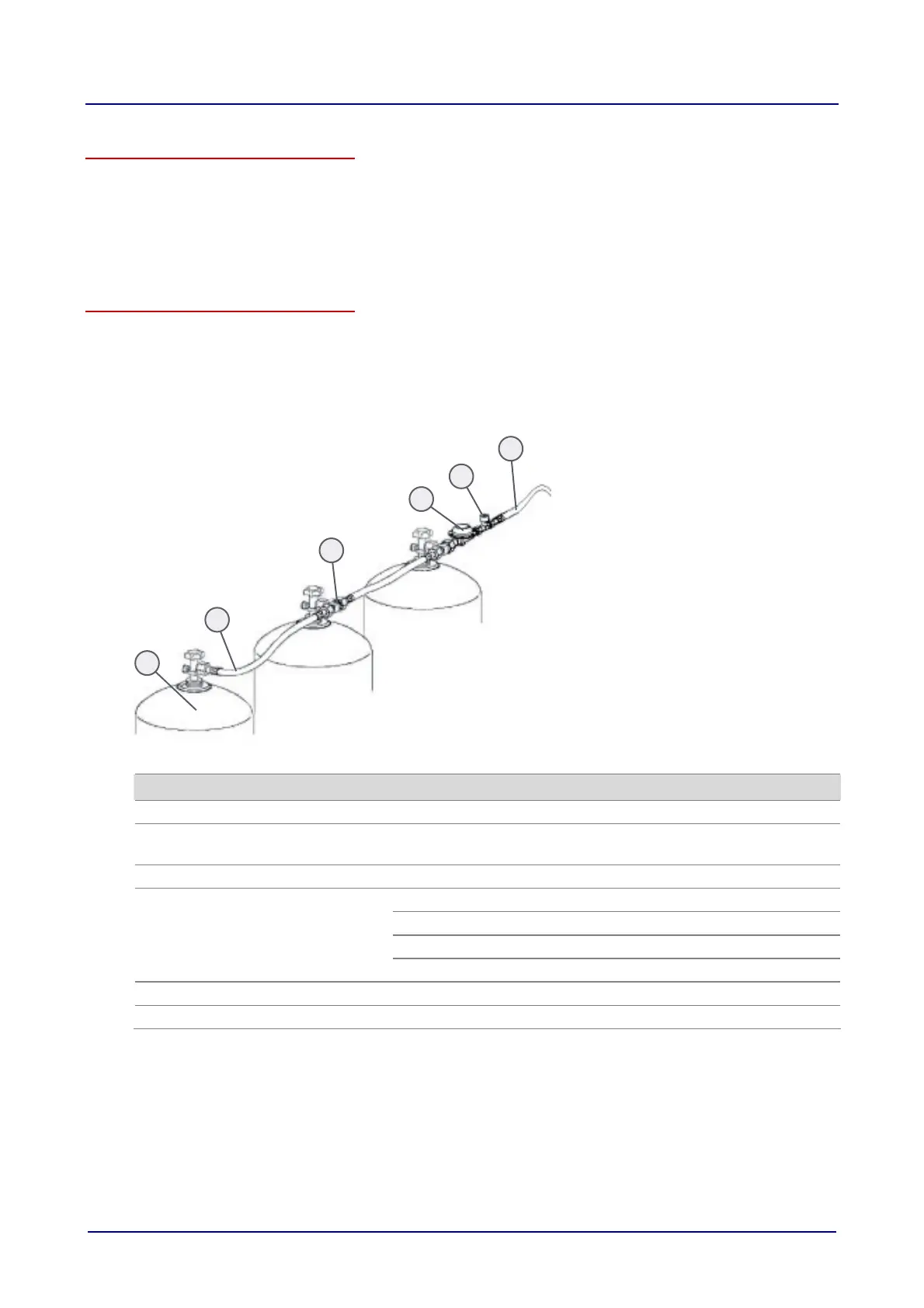

The following drawing and table show the construction of the gas installation using liquid gas bottles.
1
3
2
4
5
6
Item Description Requirement
1
Liquid gas bottle designed for gas-phase withdrawal
2
HP flexible tube 0.40 m
Medium- or high-pressure pipe
to DIN 4815-1 or DIN3384
3
T connector Standard design
Standards mark: to DIN-DVGW or CE mark
Nominal flow rate Qn: according to appliance size, see table
Pressure rating: PN 16
4
Pressure regulator
Output pressure: 50 mbar
5
Burst pipe protection Standard design
6
Flexible gas pipe to appliance max. 2.00 m long
