Installation Instructions for:
Single Channel Input Unit MCIM
Cooper Lighting and Security Ltd.
Menvier – JSB Division
Wheatley Hall Road, Doncaster, South Yorkshire, DN2 4NB, United Kingdom
Sales General Export
Tel: +44 (0)1302 – 303303 Tel: +44 (0)1302 – 321541 Tel: +44 1302 - 303250
Fax:+44 (0)1302 – 367155 Fax:+44 (0)1302 – 303220 Fax:+44 1302 - 303251
Email: sales@cooper-ls.com technical@cooper-ls.com export@cooper-ls.com

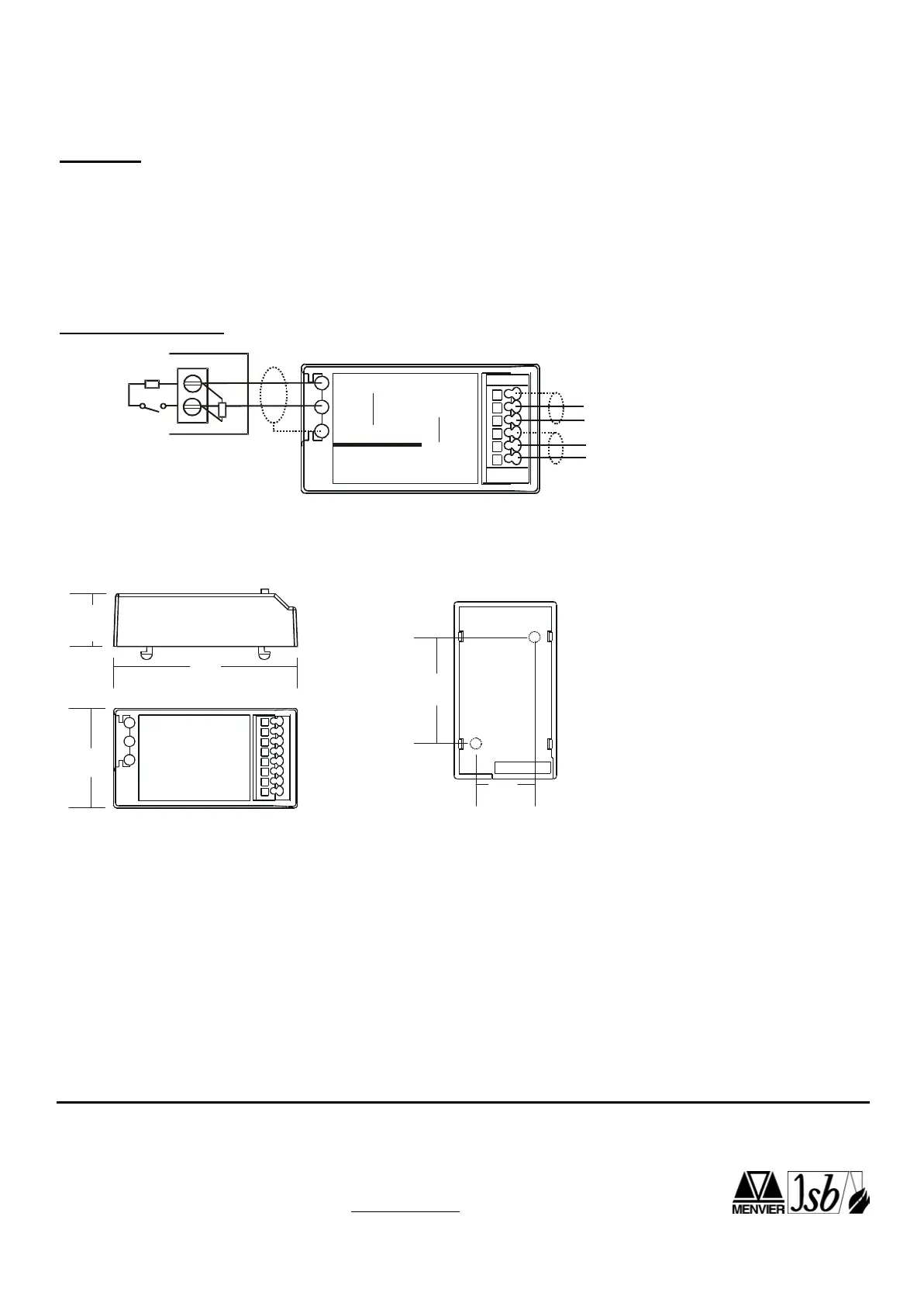

Installation
1. Fit the box in position using the mounting details below.
2. Connect the unit according to the diagram below.
3. Recommended Loop Cable Type: FIRETUF, FP200, MICC
Notes:
No addressing of the interface is required. See control panel operation for details.
Standard Connections
IN +
EARTH
INTPUT
LOOP
IN -
Earth
Loop In +
Earth
Loop Out+
Loop Out-
Loop In -
MCIM
22k
5k6
Loo p I n
Loop Out
Analogue Addressable Loop
35 mm
18.5 mm
63 mm
Dimensions
Mounting Details
(Drilling positions, template over leaf)
37.5mm
20 mm
Notes:
1. Only connect cable screen to its adjacent earth terminal.
2. The end of line resistor provided must always be fitted, even if the input is unused.
3. Monitored inputs can detect open or short circuit faults.
97
