STAGING CLEANING

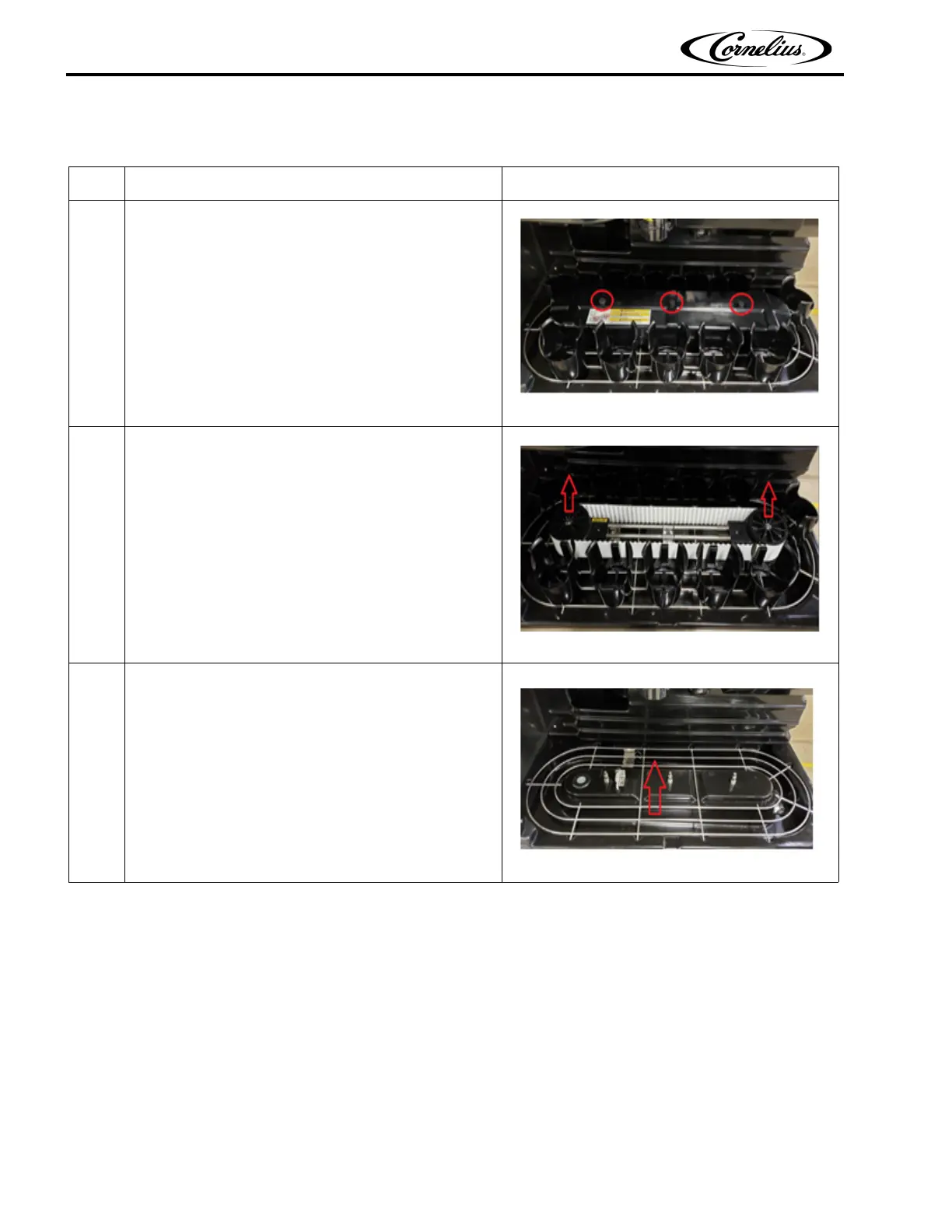

Table 10. Dis-assemble Staging
SL.NO Action Figure
1.
Remove cover by loosening the 3 thumb screws and
lifting it upwards.
As shown in Figure 27.
Figure 27.
2.
Remove the conveyor by lifting it upwards.
NOTE: : Avoid carrying conveyor by cup holder.
Figure 28.
3. Remove the grille by lifting it upwards.
Figure 29.
