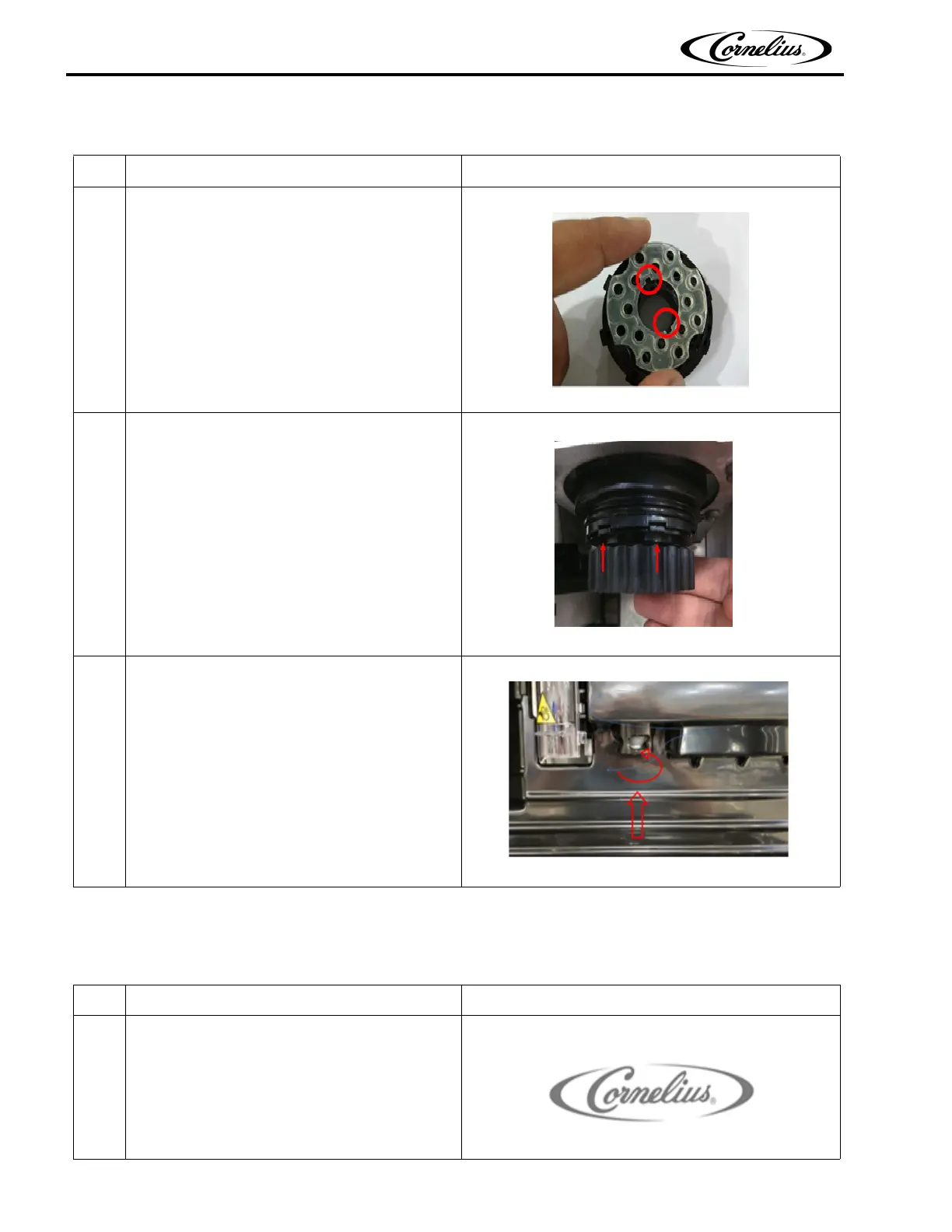

REASSEMBLE NOZZLE
Table 19. Reassemble Nozzle
Step Action Figure
1.
Reinstall the diffuser gasket in the diffuser by
a
ligning the square notch on the gasket and the
diffuser as shown in Figure 50.
NOTE: Ensure gasket is seated properly and
co
rrect side is facing upwards.
Figure 50.
2.
Reinstall the diffuser by pushing it upward and
a
ligning the diffuser tabs in place as shown in
Figure 51.
Figure 51.
3.
Reinstall the outer housing in the unit by rotating
it
in the clockwise direction as shown in Figure
52.
NOTE: Tabs must be aligned & apply
u
pward force while twisting to avoid
cross threading. Check if the nozzle
is level after install.
Figure 52.
FINAL STATUS
Table 20.
Step Action Figure
1.
Great job cleaning your ABS 2.0! This will keep
yo
ur ABS 2.0 running great!
Daily cleaning complete.
Figure 53.
