REASSEMBLE STAGING

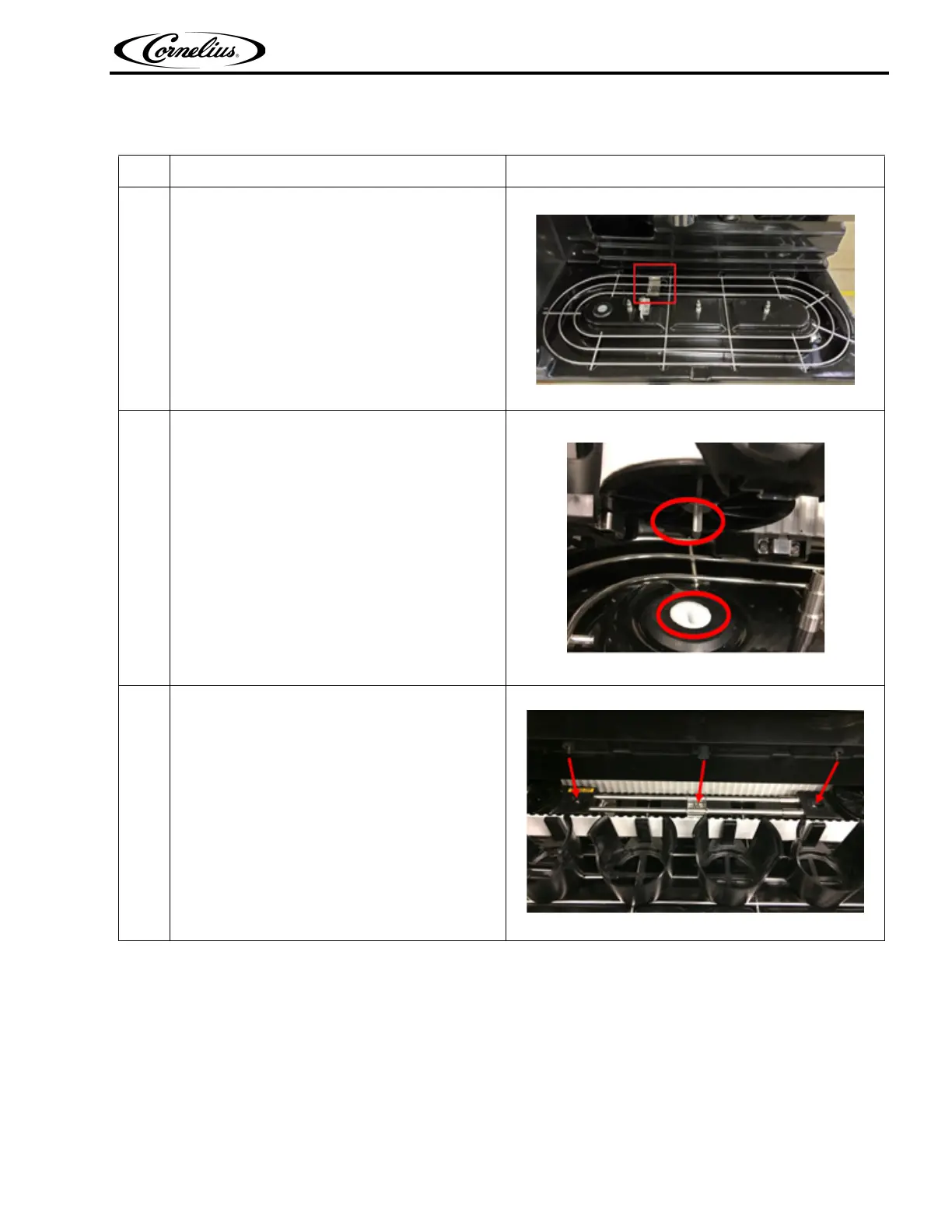

Table 18. Reassemble Staging
Step Action Figure
1.
Reinstall the grill. Align to the notches in the
d
rip-tray.
NOTE: Cup positioning bracket must be on
b
ack side as shown in Figure 47.
Figure 47.
2.
Reinstall the conveyor. Alig
n the drive shaft to
motor coupler on the left side as shown in
Figure 48.
Figure 48.
3.
Reinstall the cover. Align the posts and tighten
th
e 3 thumb screws to secure in place.
Figure 49.
