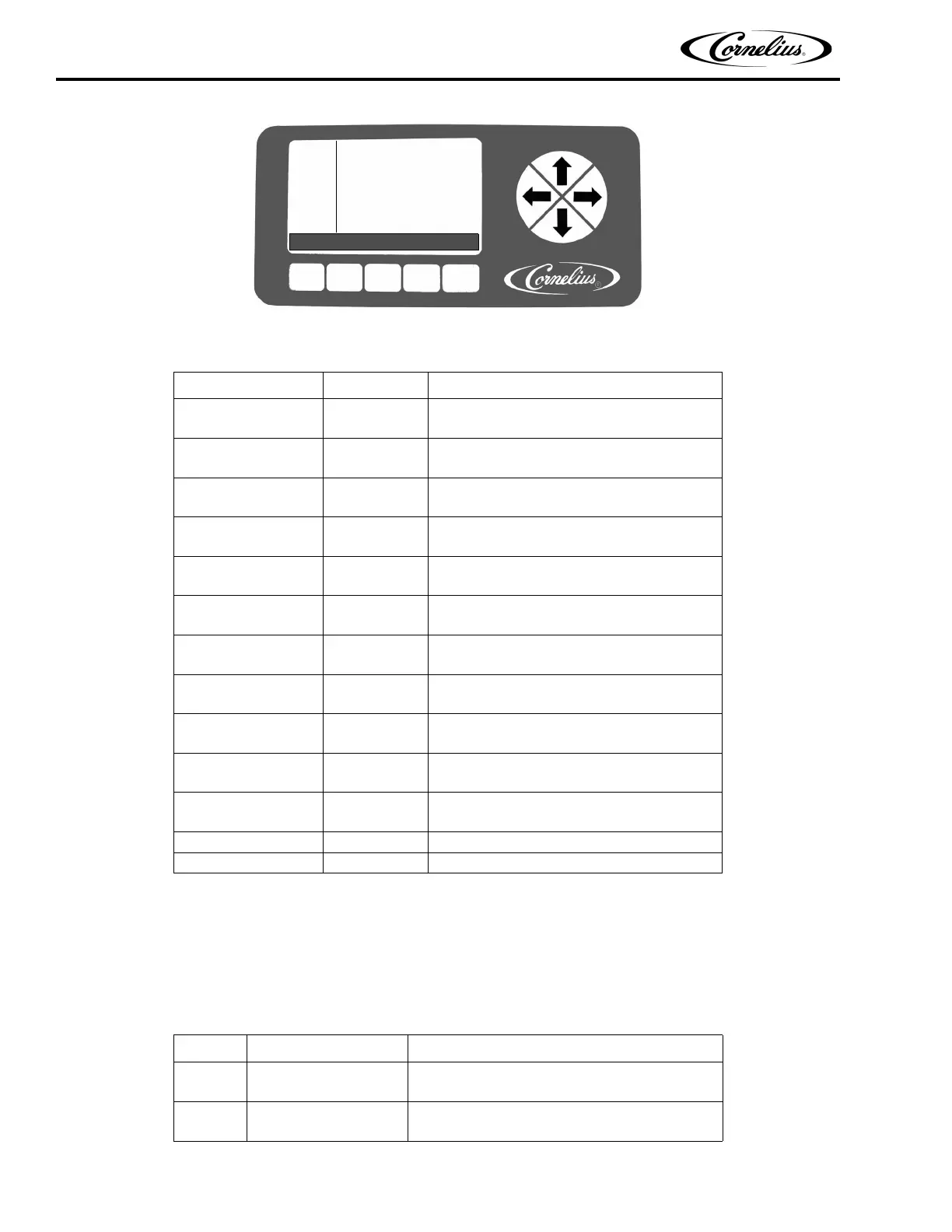

Figure 23. Totals Screen
BRIX Setup Menu
BRIX is important to the quality of the final product. The BRIX menu facilitates the extraction of a sample of product
from the unit for BRIX measurement. There is an automatic three second dispense of product that produces a con-
stant volume so that a BRIX comparison can be made between samples. To perform a BRIX test, perform the pro-
cedure in Table 27.
Table 26.
Display Value Description
POWER ON HHHHH:MM
Shows how long the machine has been pow-
ered up
SLEEP HHHHH:MM
Shows how long the machine has been in sleep
mode
SYSTEM ERROR HHHHH:MM
Shows how long the machine has had a system
error
COMP RUN #1 HHHHH:MM
Shows how long the compressor has been run-
ning since the last reset
COMP CYCLES #1 ########
Shows the number of compressor cycles since
the last reset
BARREL REFG #1 HHHHH:MM
Shows how long the barrel has been in refriger-
ation mode
MOTOR ON #1 HHHHH:MM
Shows how long the motor has been running
on a specific barrel
MOTOR SEAL #1 HHHHH:MM
Shows how long it has been since the motor
seal was inserted on a specific barrel
DEFROST #1 HHHHH:MM
Shows how long the barrel has been in defrost
mode
FILL CYCLES #1 ########
Shows the number of times the barrel has filled
with product
SYRUP RUN #1 HH:MM:SS
Shows how long the syrup solenoid has been
open
SYRUP OUT #1 HHHHH:MM Shows how long the syrup has been out
ERROR #1 HHHHH:MM Shows how long the barrel has had an error
Table 27.
Step Action Procedure
1 Set status of barrels
Make sure the status of all barrels is OFF on the
control display.
2
Remove drip tray/access
panel
Remove the drip tray, loosen the two screws hold-
ing the access panel and remove it. (Figure 25)
TOTALS
12:51P
MAR 04
POWER ON 00079:34
SLEEP 00034:21
BACK
SYSTEM ERROR 00003:45
COMP RUN #1 00006:53
COMP CYCLES #1 0000012
BARREL REFG #1 00006:54
To Next Page
