EVOLUTION COVER page-31
5.
Insert the inner corner brackets in both ends
of the C- channels remaining. Use the
provided Robertson sheet metal #8 x 3/4 in.
screws on the inside holes Figure 41.
WARNING
Do not overtighten the screws to avoid thread
damage.

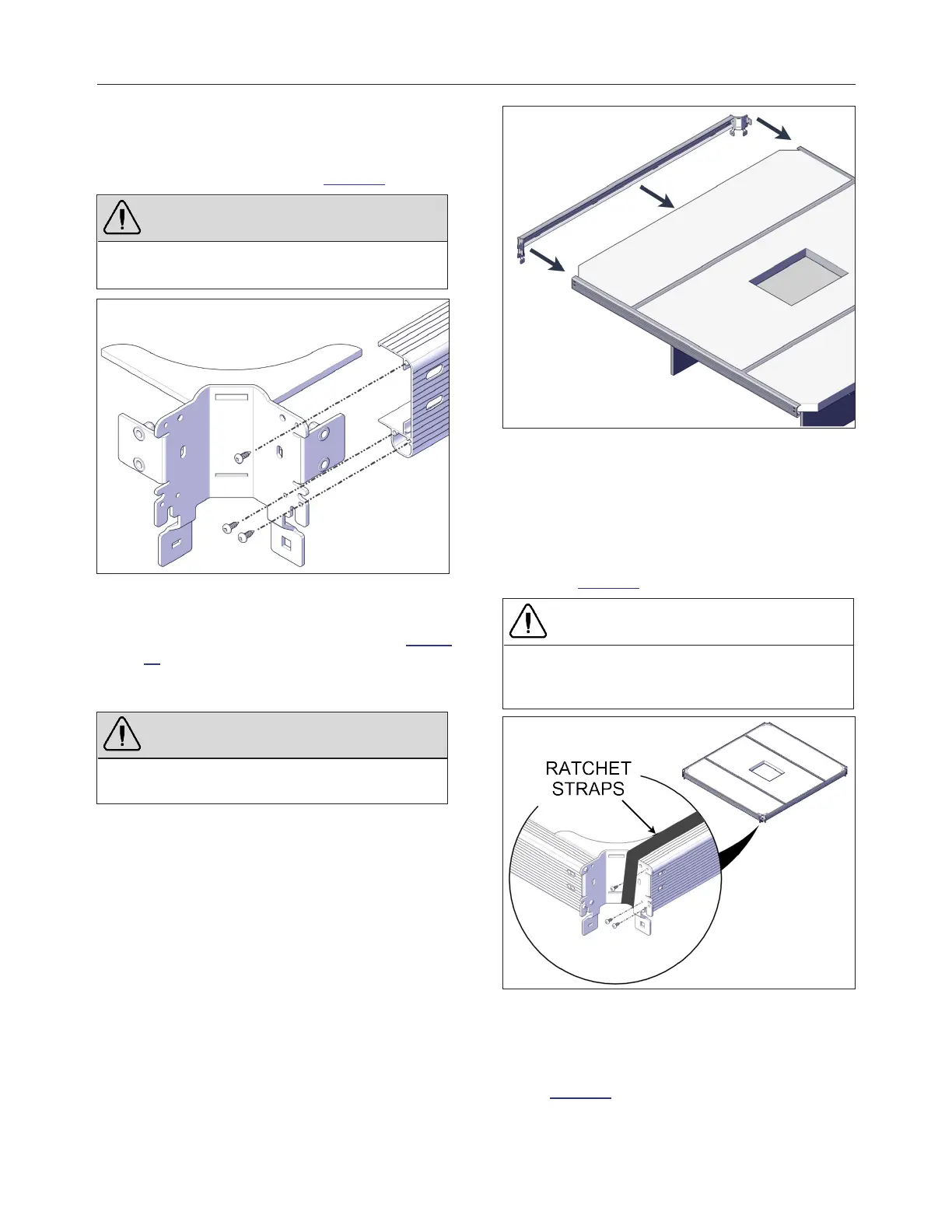

FIGURE 41: CORNER BRACKET INSTALLATION
6.
On one end of the cover, slide on corner
brackets and C-channel assembly see Figure
42. It is recommended to slightly engage the
top flange before the bottom when sliding the
C-Channel onto the foam panel.
WARNING
When assembling the C-Channel onto the foam
panel, be careful not to delaminate the fiberglass.
FIGURE 42: CORNER AND CHANNEL INSTALLATION
7.
On the other end of the cover, slide the other
corner bracket and C-channel assembly.
8.
Use the 50 ft. (15 m) ratchet straps to properly
lock the foam panels in place. It will help you
to install the final components of the cover
see Figure 43.
CAUTION
Use cardboard or non-abrasive material under the
ratchet of the straps. The ratchet could damage the
fiberglass panel and the beams.
FIGURE 43: FOAM PANEL STRAPPING ON CORNERS
9.
On both corners of the assembly, install the
Robertson sheet metal #8 x 3/4 in. screws on
the inside holes of the side C-channels see
Figure 44.
240799 OWNER'S MANUAL REVISION 4
