CPS ECB200KTL/US-800 - Page 28

Electrical Installation
27 / 135

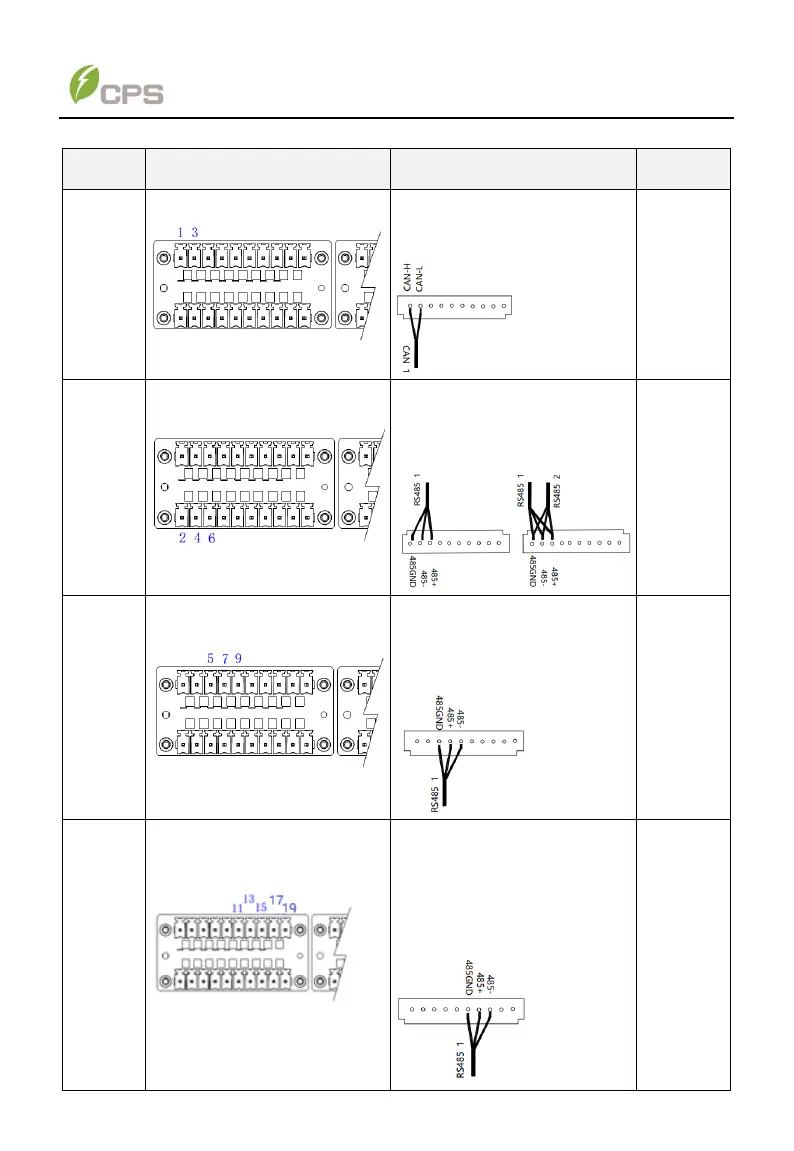

Table 4-3 Communication connection interfaces
Item
Configuration description
Remark
①CAN
1--CANH
3—CANL
Stand-alone
Networking
NA
Connect
with
EMS/
BMS
②RS485
2 --ExRS485-GND
4 --ExRS485-
6--ExRSB485+
Stand-alone
Networking
Connect
with EMS
③RS485
5 --IOS2RS485-GND
7 --IOS2RS485+
9 --IOS2RS485-
Stand-alone
Networking
NA
Connect
with BMS
④RS485
11 --IOS1RS485-GND
13 --IOS1RS485+
15 --IOS1RS485-
17 --12V
19--GND
Stand-alone
Networking
NA
Connect
with
FlexOM
gateway
