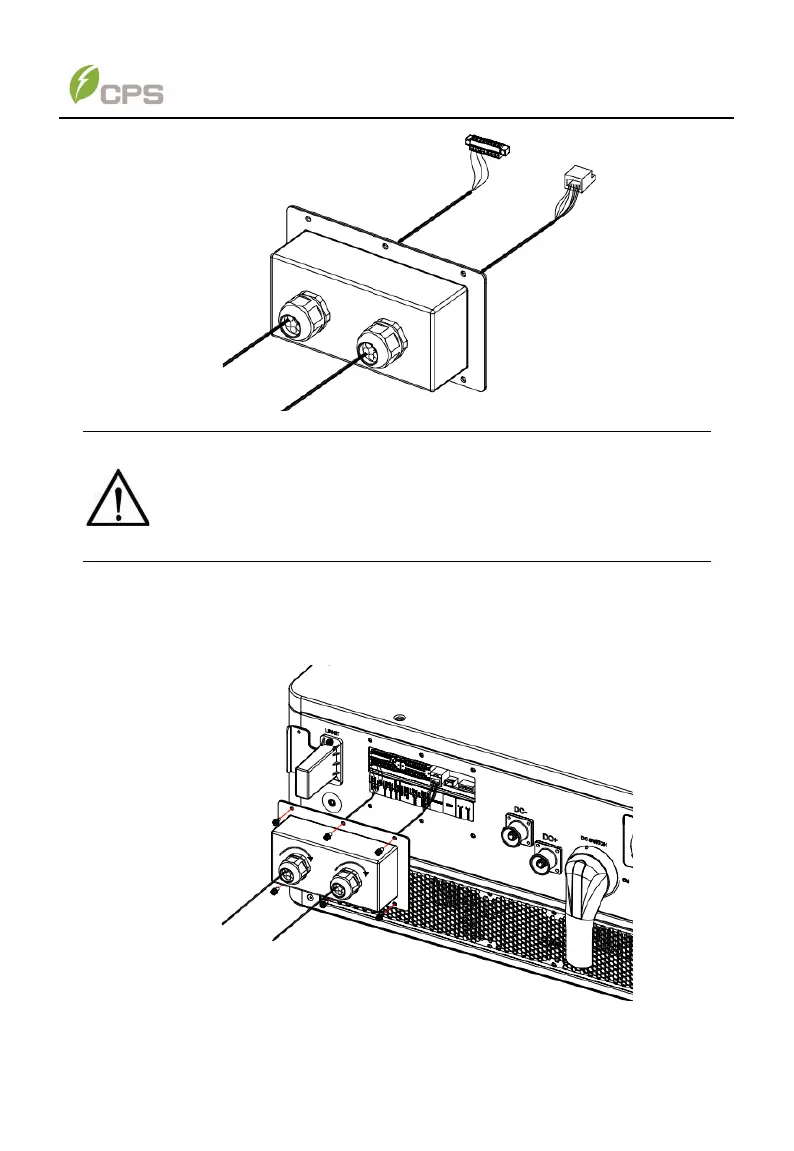

Figure 4-10 prepare wiring terminals
NOTICE:
 To achieve EMS RS485 networking communication, we shall
open the top cover and find correct RS485 ports. It may be a
little difficult for users, so please contact our service team for
help.
 The USB port is designed for system upgrading by a USB drive.
4. Plug 10-pin terminals and Ethernet connector into their ports correctly. Reserve
proper cable length and recover the communication cover.
5. Re-tighten the nuts onto the cable fastening heads and all the screws onto the
communication cover.
Figure 4-11 Re-tighten the nuts and screws
