Electrical Installation
29 / 135

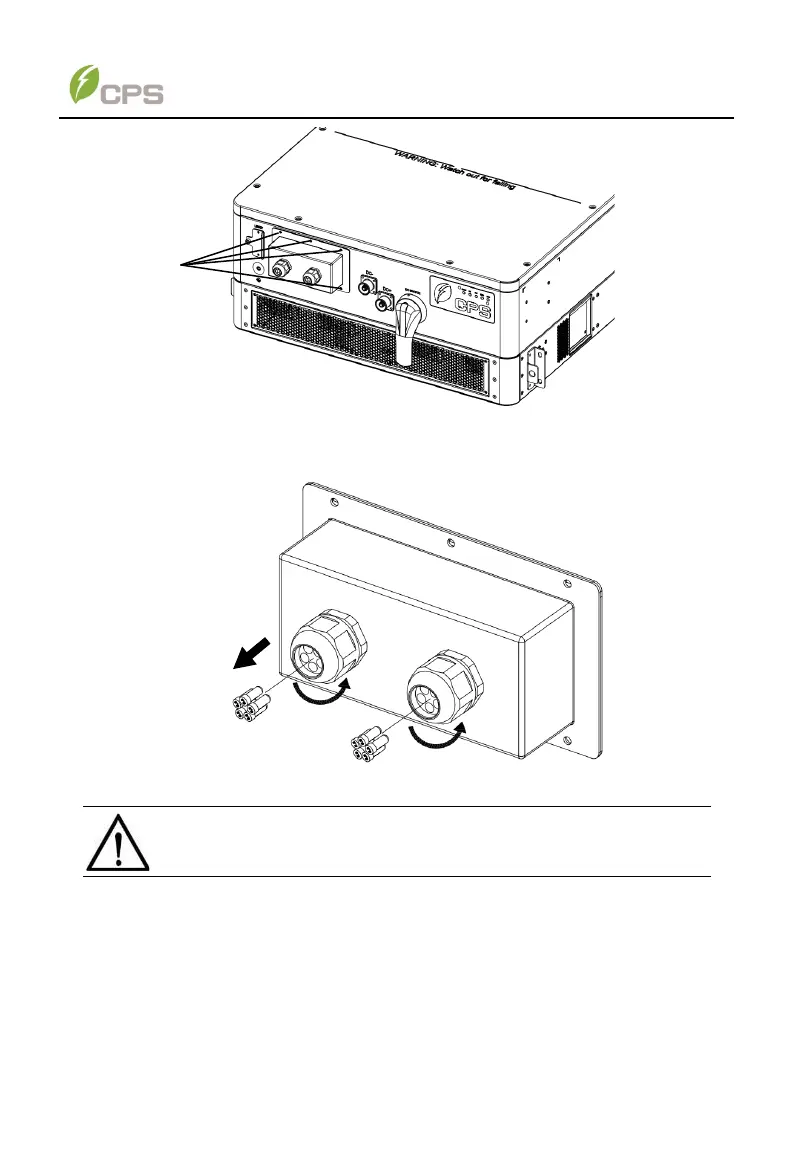

Figure 4-8 Loosen fastening screws
2. Loosen the nut in the cable fastening head, and then take out the proper quantity
of stoppers as required, as shown in Figure 4-9.
Figure 4-9 Remove the stopper
NOTICE:
Do not take out any unnecessary stopper in order to prevent water
from entering communication cover.
3. Lead the communication cables through the wiring holes of cable fastening head.
Crimp CAN, RS485 and other cables to correct pins of 10-pin terminals by
referring to figure 4-7 and prepare an Ethernet connector.
Fastening screws
