9.3 Y-Comb Terminal Block (Optional)
The Y-Comb is intended for use in the SCA25KTL-DO/US-208 、SCA 50
/60KTL-DO/US-480 inverters. This accessory is applied between two adjacent
fuseholders within the inverter wire-box and distributes current between the
two fuseholders. When products such as Y-branch connectors are used in the
array field to combine the output of two strings the current is as much as 30 or
40A. In order to distribute current and provide optimal thermal results the
Y-Comb is required.
15A fuse 2 pcs
(Standard wire-box)
Optional Y-Comb
Terninal

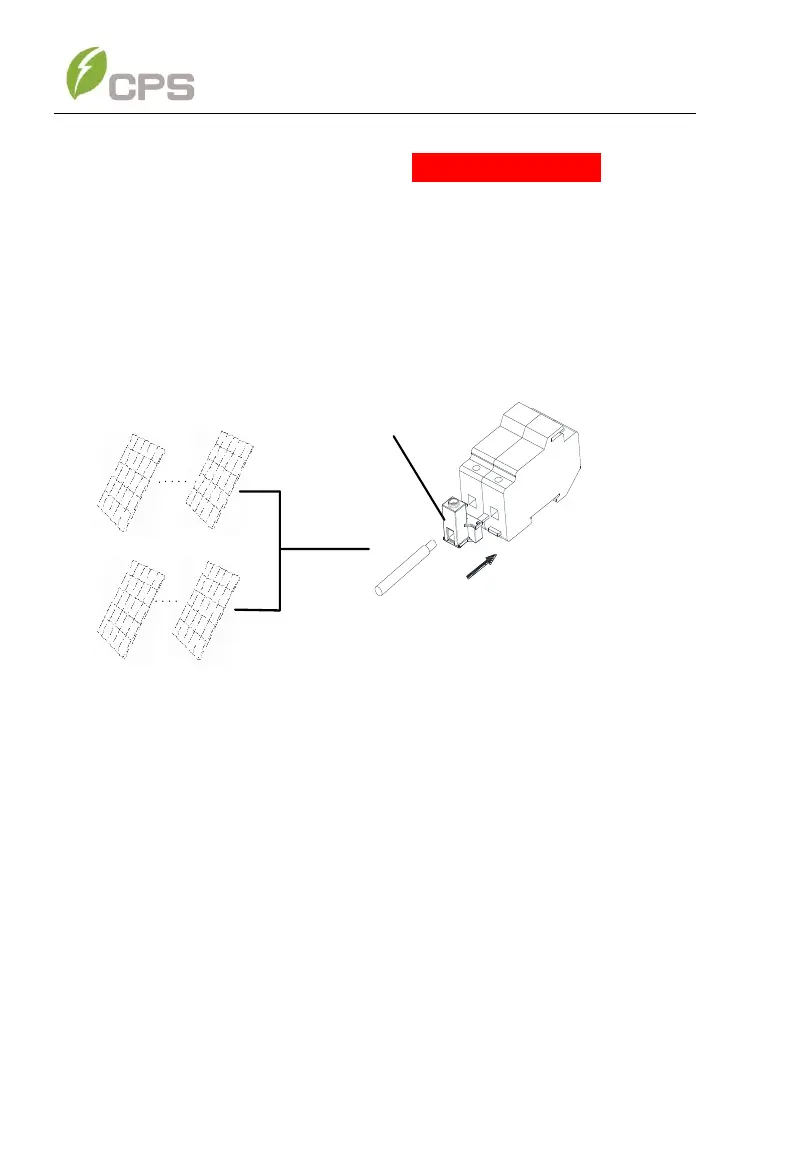

Figure 9-6 Y-Comb Terminal Block
