3.2.3 Installation Space Requirement
The distances between the inverters or the surrounding objects should
meet the following conditions:

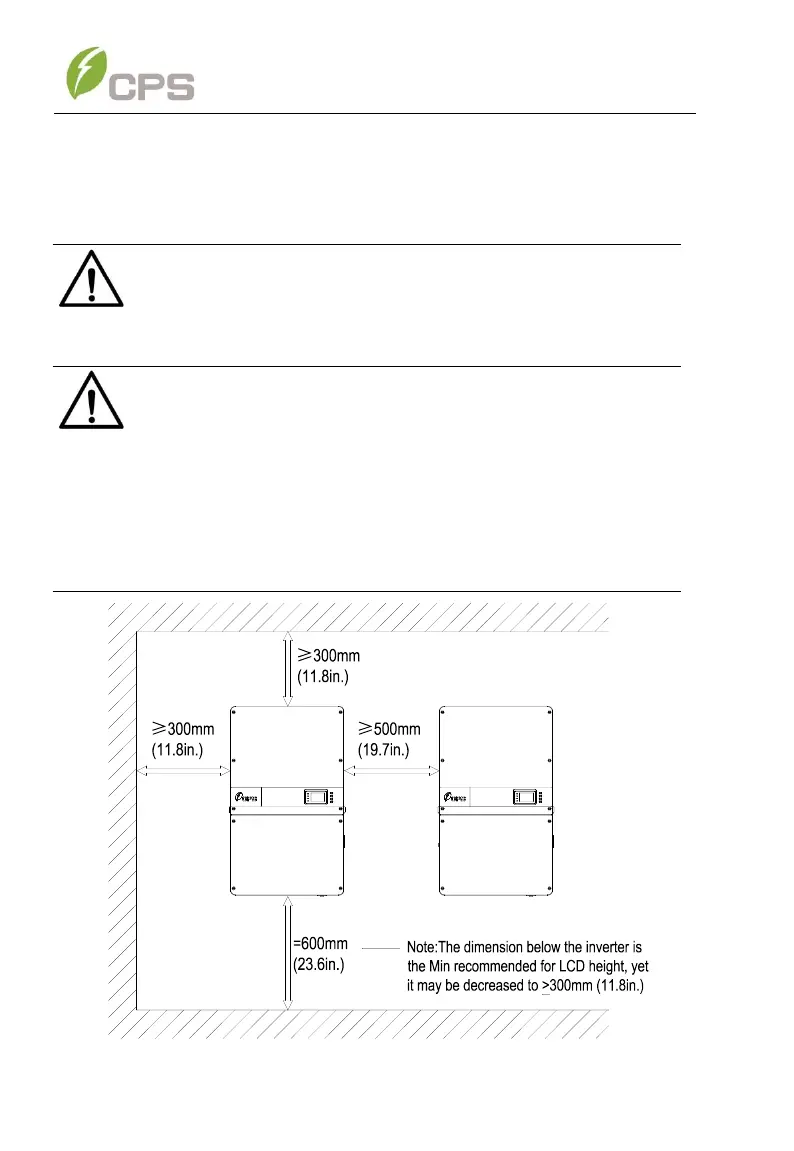

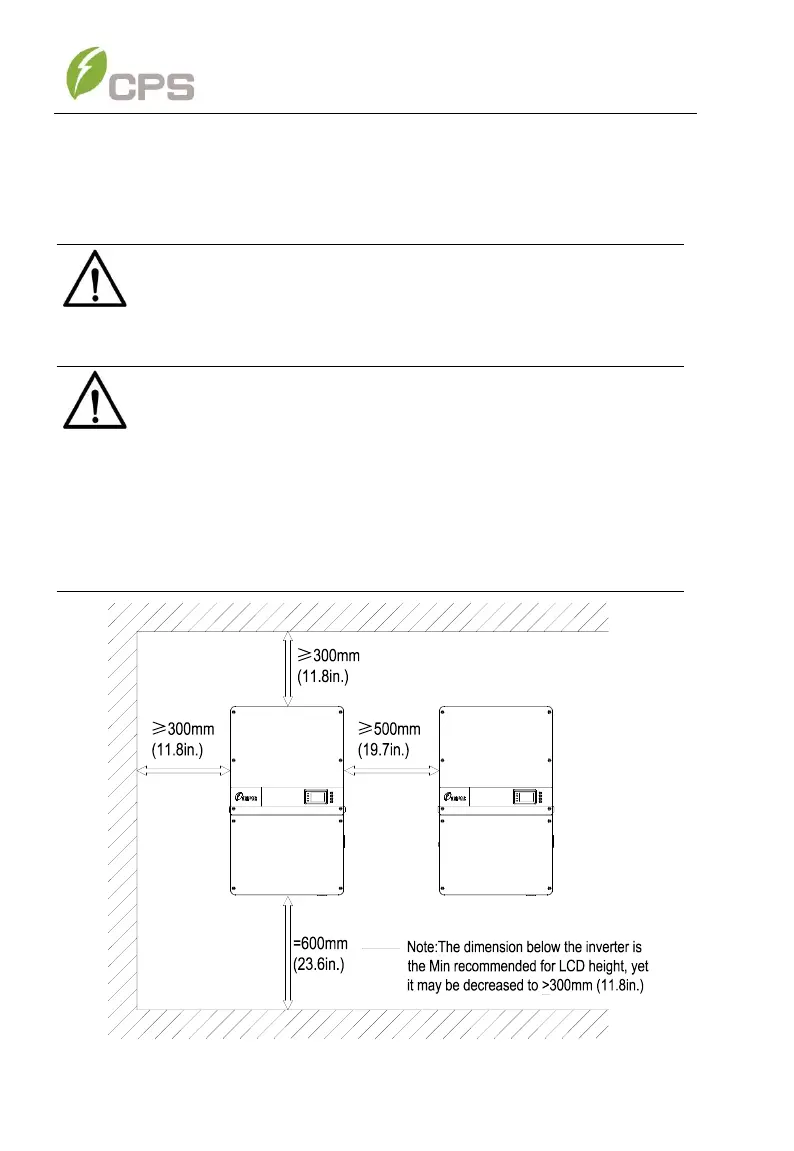

Figure 3-3 Inverter Wall Mounting Dimensions
NOTICE:
When the inverter is mounted tilted backward at ≤75° from horizontal
in an outdoor environment, the CPS Shade Cover (SSC-60ST)
accessory must be installed on the inverter to avoid direct sunlight.
NOTICE:
The spacing between two adjacently mounted inverters must be
≥19.7in (500mm). Spacing should be increased for installation
locations with ambient temperature ≥ 45°C. Ensure that the air space
around the inverter is well ventilated. The spacing below the inverter
is intended to ensure the LCD and Keypad height are well positioned
for the user, and may be decreased, however consideration must be
taken for locations known to flood or have seasonal snow build up.
