3.2.4 Mounting the Inverter onto the Bracket
Step 1 Locate and mark the 8 holes on the wall, PV racking structure, or
bearing surface for attaching the inverter mounting bracket as
shown in Figure 3-6.

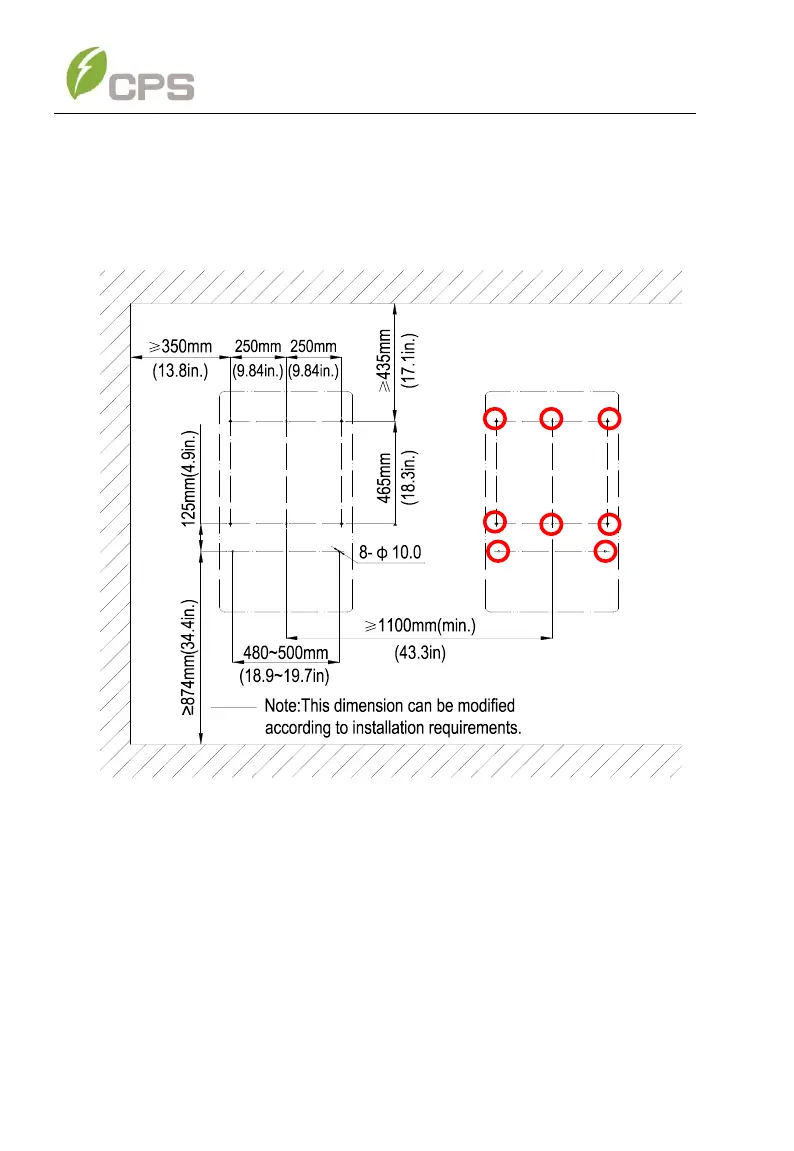

Figure 3-6 Dimensions of the Bracket Anchoring Holes for Mounting
(a) PV Racking Mount: Locate holes or anchors at the marked
positions; Fasten the Mounting Bracket with the M8x25
Assembling Bolts supplied with the Accessory Kit. Note: if
mounting the Bracket to PV Racking, the M8 nuts are not
provided in the Accessory Kit. Tools Required: No. 13
wrench(es)
