38
3.3.2 Wiring Boxes
DC INPUT
COMM. PORT
AC OUTPUT
5.90in(150.00mm)
8.97in(228mm)
12.05in(306mm)
16.34in(415mm)
17.83in(453mm)
19.29in(490mm)
2.87in(73mm)
4.29in(109mm)
0.32in(8mm)
2.87in(73mm)
4.29in(109mm)

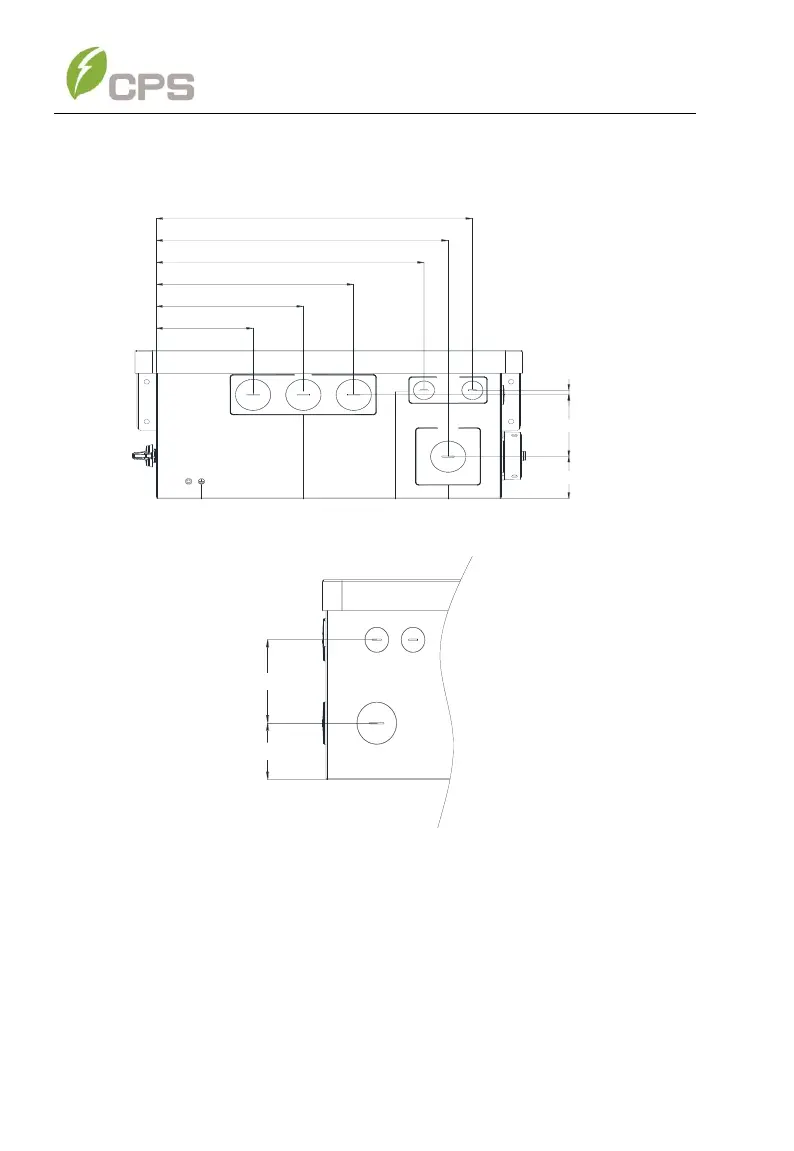

Figure 3-20 Conduit Knock-out Locations on the wirebox
① Knock-outs for DC input, (3) 1-1/2 inch Trade Size (1.98" Dia) and (1)
removable gland plate for custom size conduit (i.e. when use of 2 inch
or 2-1/2 inch Trade Size conduit is required) – later models may not
have gland plates.
② Knock-outs for communication, 3/4 inch Trade Size (1.11" Dia)
