③ Knock-out for AC output, (1) 1-1/2 inch Trade Size (1.98" Dia) on a
removable gland plate for custom size conduit (i.e. when use of 2 inch
or 2-1/2 inch Trade Size is required)
④ External ground connection point (M6)
6 7 7 8
5
5

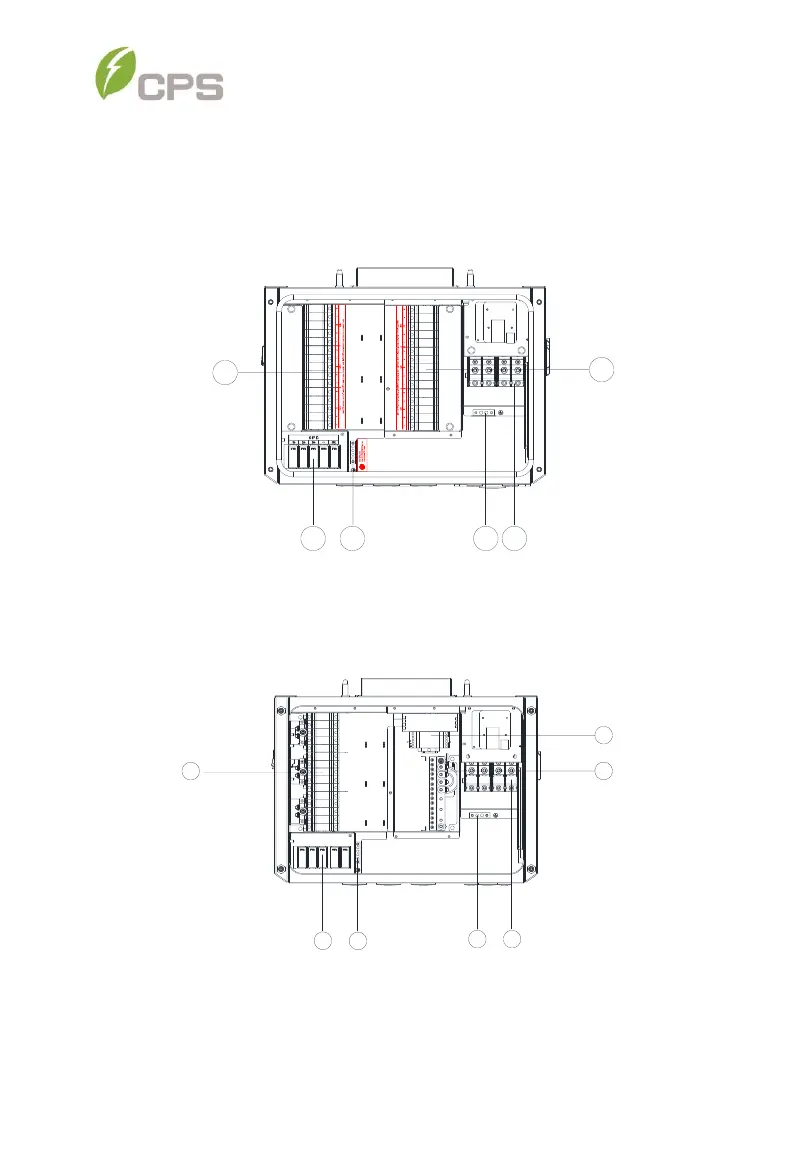

Figure 3-21 Internal Connection Points within the Standard wirebox
（only for CPS SCA50/60KTL-DO/US-480）
6
7
7 8
9
5
10
Figure 3-22 Internal Connection Points within the RSD wirebox
（only for CPS SCA50/60KTL-DO/US-480）
