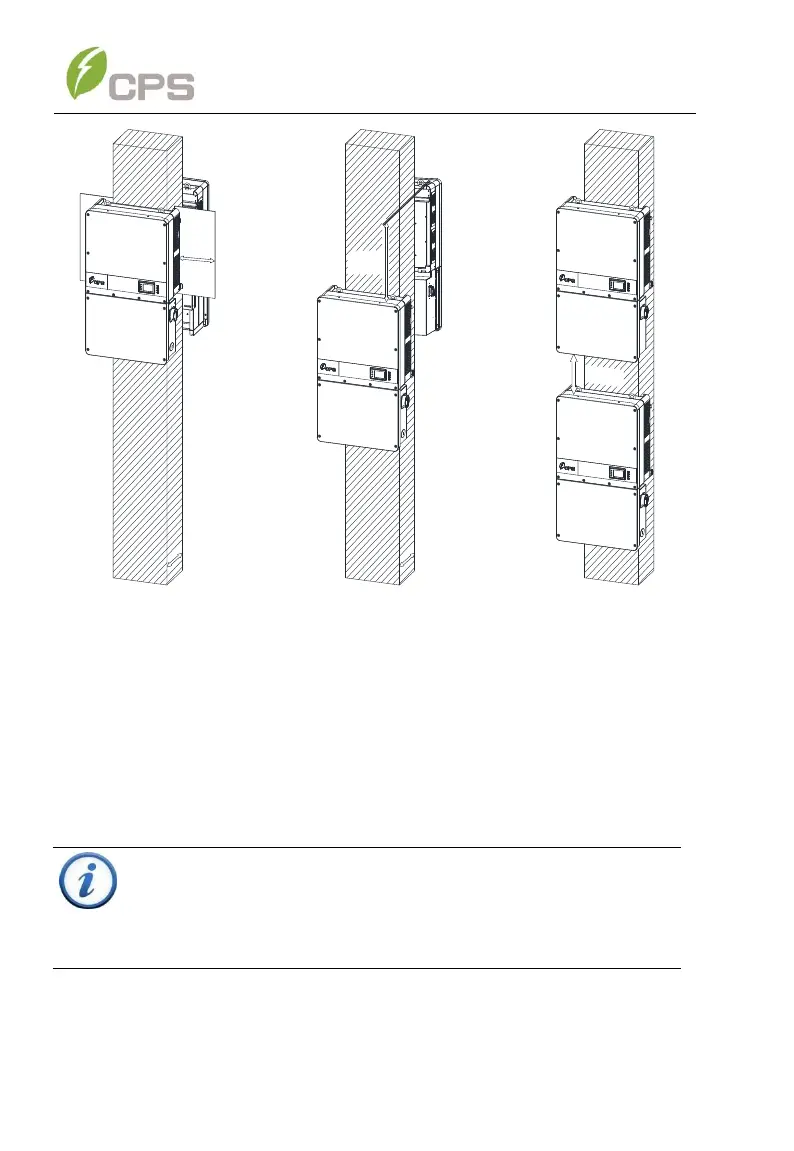

Figure 3-5 Inverter Pillar or Column Mounting Dimensions
INSTRUCTION:
If the inverter is installed on a pillar or column (instead of solid wall),
the space from the bottom of one inverter to the top of the inverter
below may be as small as 11.8in (300mm).
