Step 2 Hang the inverter onto the mounting bracket as shown in
Figure 3-9 and Figure 3-10:
(a) Lift mounting: Two M10 lifting eye nuts may be installed at
the top of the inverter. Use sling rope or bar (inserted
through both lifting eye nuts) to lift the inverter onto the
bracket. The minimum angle between the two sling ropes
should be less than 90 degrees. NOTE: The M10 lifting
eye nuts are not included with inverter.
(b) Manual mounting: At least two people are required to safely
lift the inverter by the grab handle positions marked in
Figure 3-10 and mount it onto the bracket.
CAUTION:
The main enclosure of the CPS SCA36/50/60KTL-DO/US-480 3-
Phase String Inverters weighs approximately 56kg (123.5
pounds). Ensure the mounting bracket is properly installed and
secured before hanging the inverter on the bracket. It is
recommended to have at least 2 people to mount the inverter due
to the weight of the equipment.

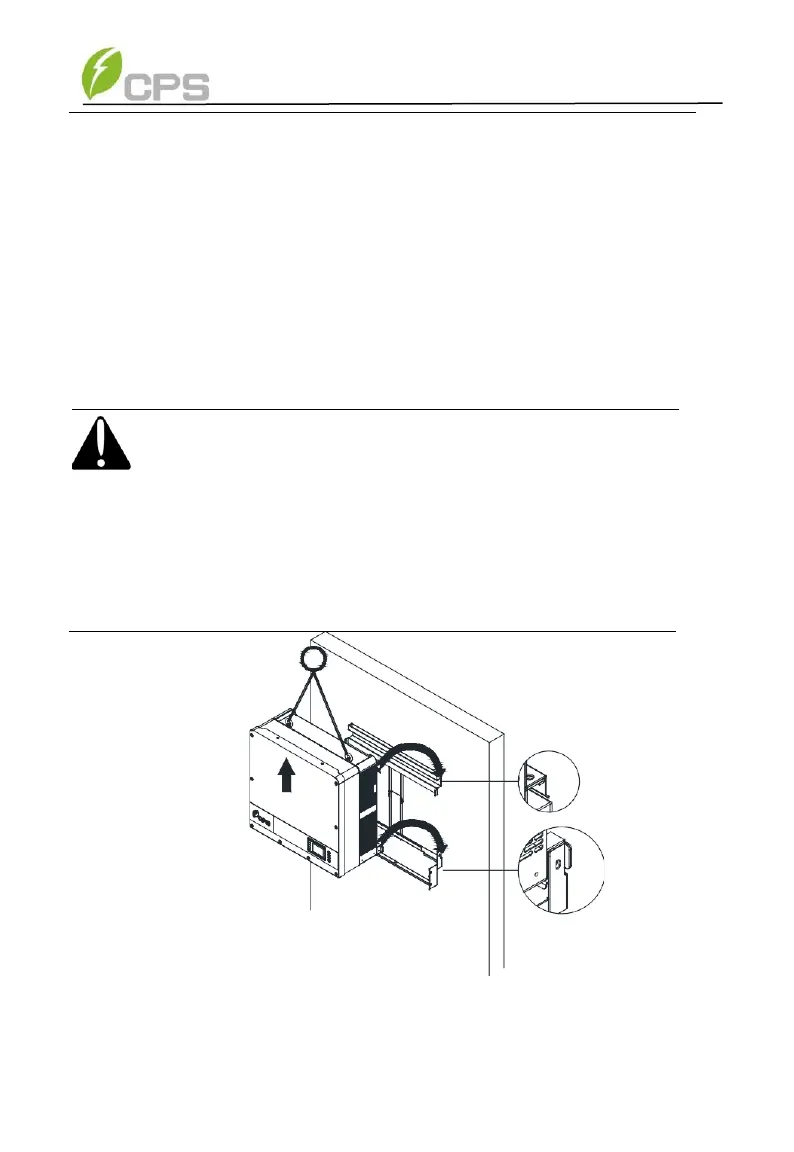

Figure 3-9 Mount the Main Enclosure on the Bracket by Lifting Sling
(eye nuts required)
