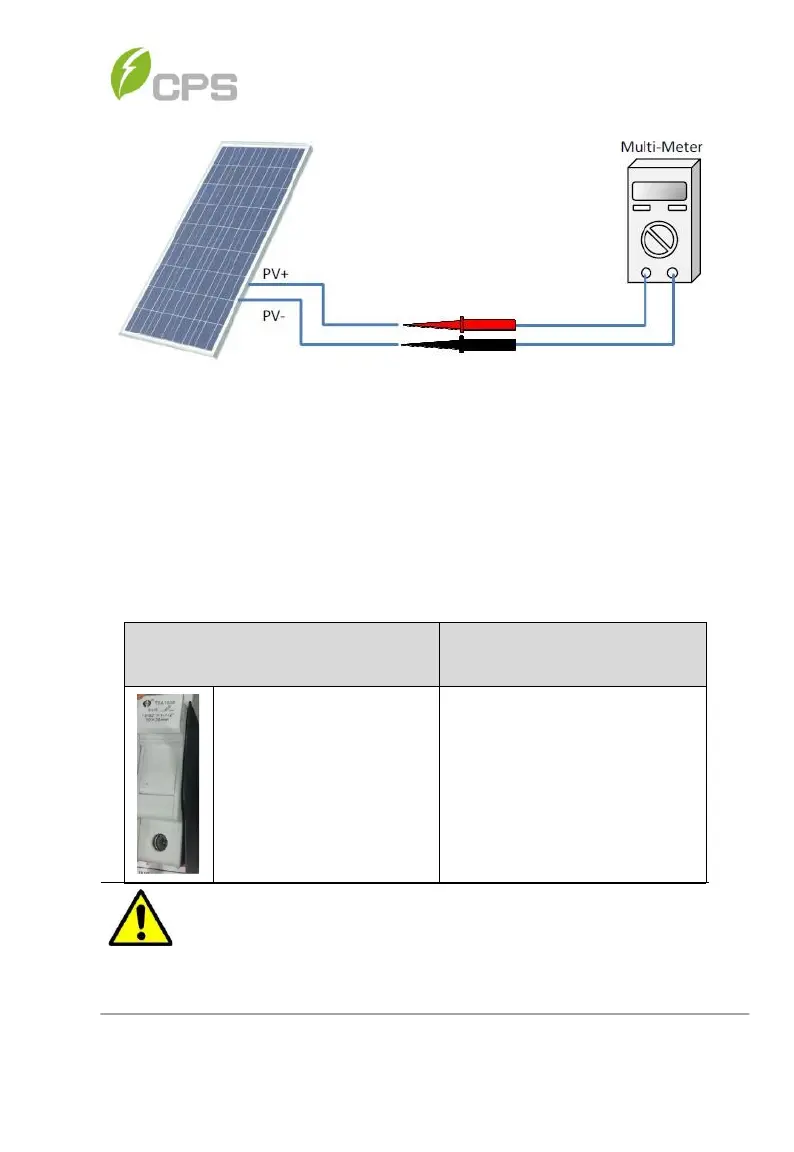

Figure 3-23 Polarity Check
3.3.3.4 DC Fuseholder Torque Specification
The inverter wiring box may be assembled using fuse holders supplied
by Sinofuse. The touch safe fuse holders have unique terminal torque
values specified by their manufacturers. See Table 3-7 for specified
torque values.
Table 3-7 DC Fuse Holder and Busbar Torque Value by Manufacturer
WARNING:
Failure to apply proper torque to the fuse holder and busbar terminals
may result in an improper conductor termination and cause excessive
heat or fire.
