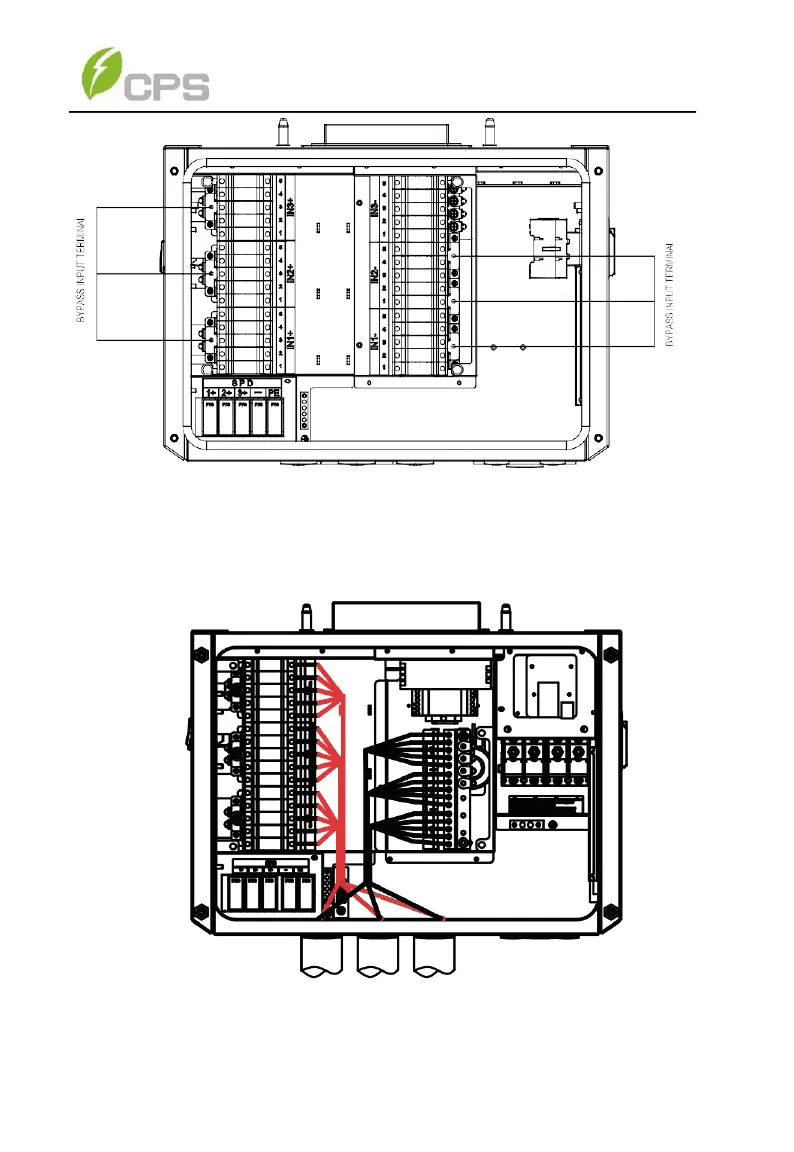

Figure 3-25 Bypass Terminal option installed within the Standard wirebox
The DC input connection diagrams for SCA36/50/60KTL-DO/US-480 inverters are as
follows:
Figure 3-18-1 SCA36/50/60KTL RSD wiring box
