ASSEMBLY
Now you can attach the second leg piece to the other side of the front brace
using another two carriage bolts and flanged hex nuts, same as show above.
Repeat the above steps for the back brace and hand tighten

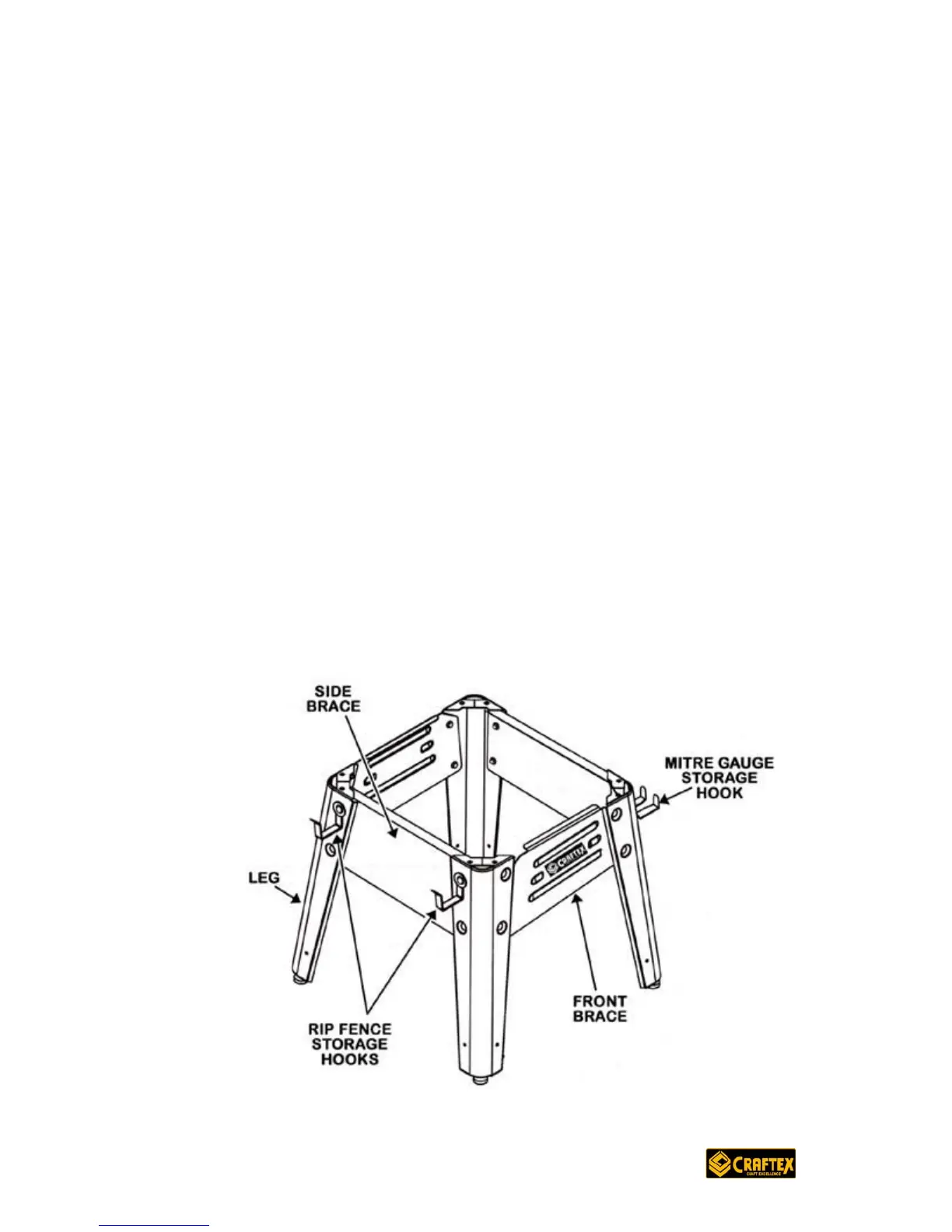

See Figure 1
Place the left side brace inside the leg piece and align the holes on the side
brace with the holes of the leg piece. Ensure that the miter gauge hook is secure
to the leg piece on the right side of the leg stand. Use two of the carriage bolts
and hand tighten using the flanged hex nuts.
Repeat the same step for the opposite side of the of the saw (minus the miter
gauge hook)
See Figure 1
Now thread one hex nut (3/8-16) on the screw of the leveling foot and adjust it
until it stops. Slip a foot brace onto the leveling foot before you place the leveling
foot in the hole of the bottom of the leg. Secure with another hex nut. This will
ensure stability.
Insert a screw through the hole in the leg stand and adjust the leveling feet all the
way to the bottom of the leg. Now you can securely tighten all hex nuts using a
wrench.
See Figure 2
