ASSEMBLY
Installing the Bevel Adjusting Hand wheel
First, find the following loose parts
1 Bevel Hand Wheel
1 Pan Head Screw (1/4-=20 x 5/8” with washer)
Place the bevel hand wheel onto the bevel shaft. Ensure that the fit is proper and
slide it all the way.
Use the pan head screw and tighten the screw in the middle of the bevel hand
wheel.
See Figure 5

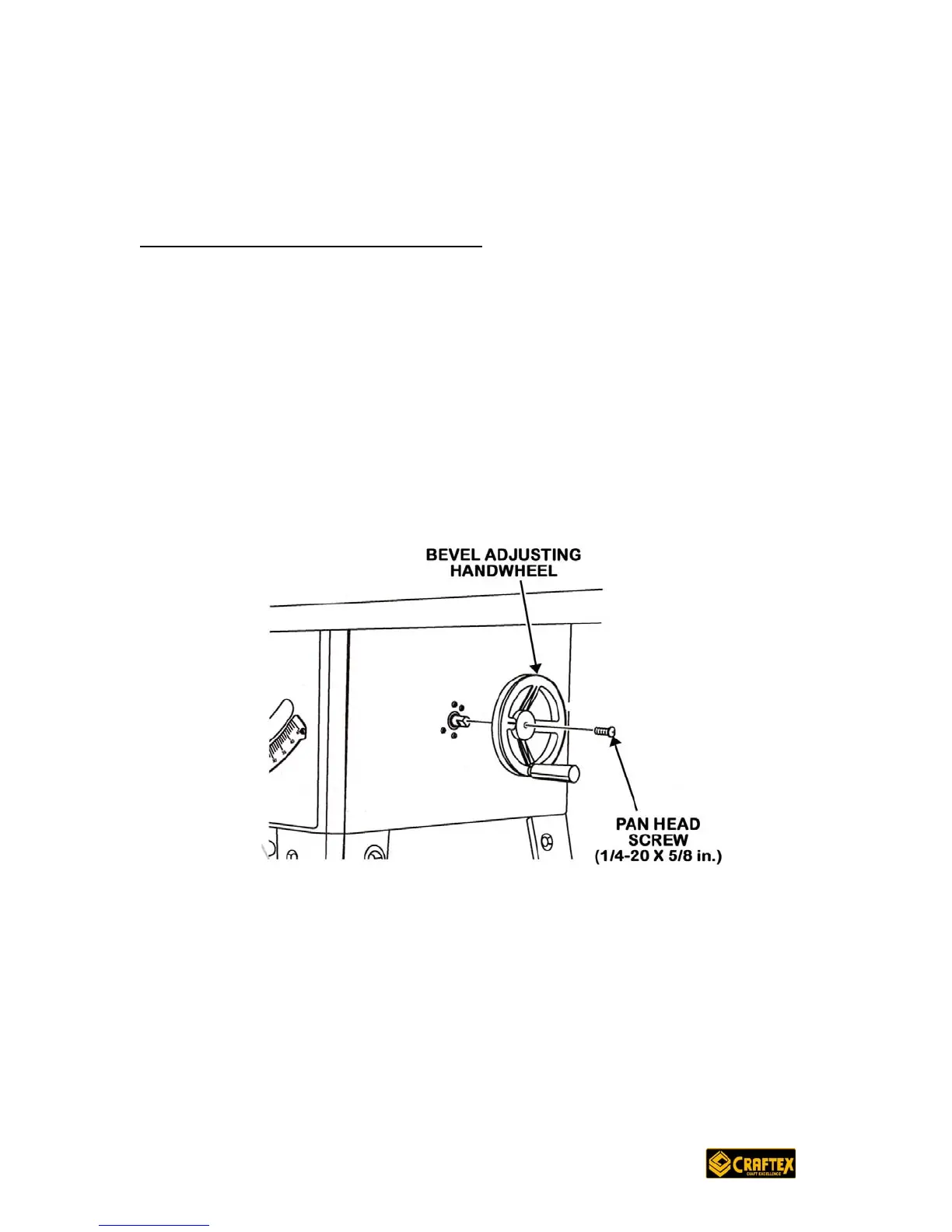

Figure 5
