ASSEMBLY
Installing the Front Rail to the Table
Insert the square head bolts (5/16-18 x 1”) into the holes on the front of the saw
table and extension tables.
Take the flanged hex nut (5/16-18) loosely allowing the square bolt head to
protrude just a little.
Now, slide the front rail slot just over each of the square head bolts and at this
point only finger tighten.
Align the front rail with the 7 1/8” mark on the right side of the rip scale with the
right edge of the cast iron table top

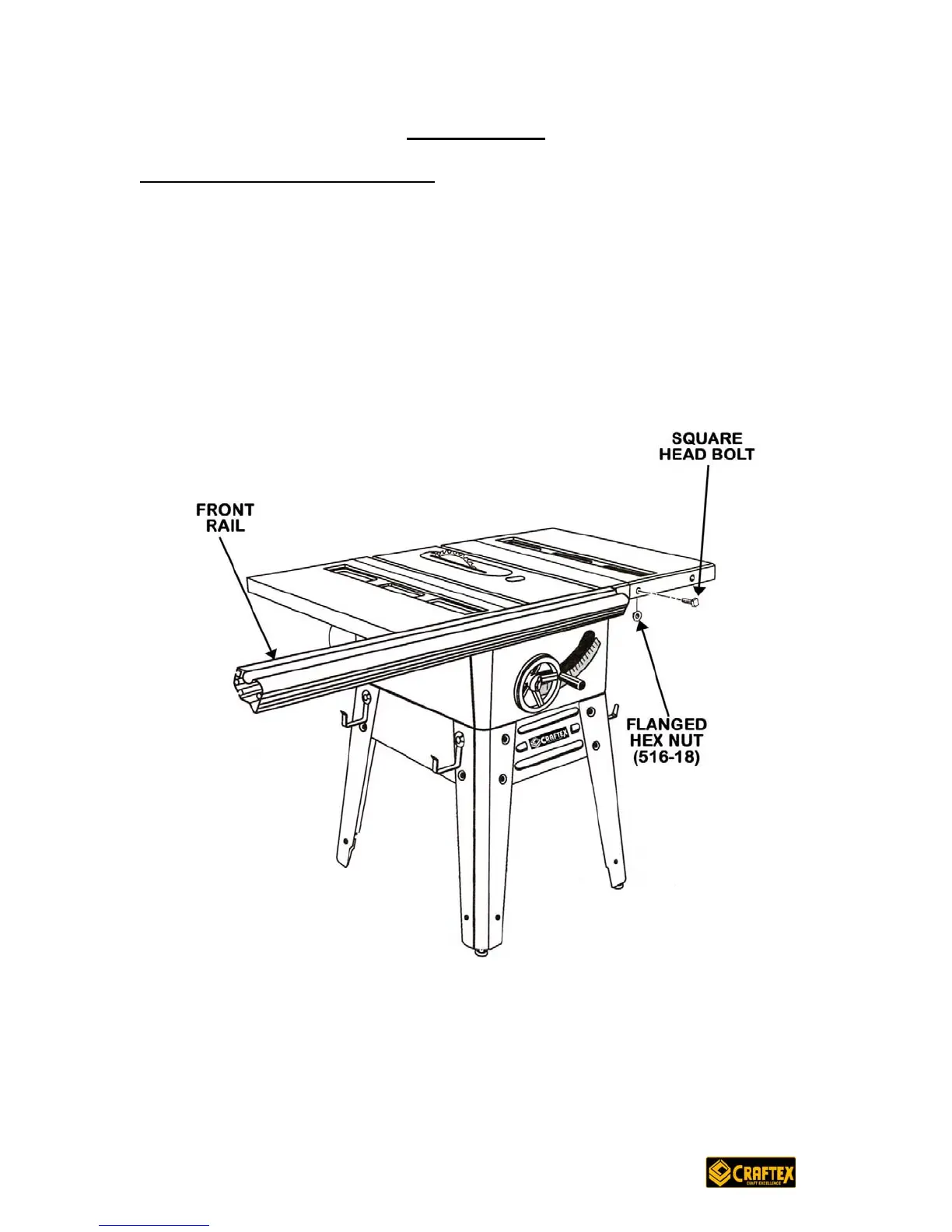

See Figure 7
