ASSEMBLY
Set the saw bevel to ‘0’ so that the blade is vertical and lock the bevel with the
lever above the blade height wheel. Raise the blade now. Slide the fence over to
the right of the saw blade and check the fence cursor to the left of the fence. The
cursor line should be at the ‘0’ mark or the first line of the right side of the scale.
To adjust the front fence rail use a rubber mallet to gently tap the rail assembly
either left or right until this is attained. The back rail should also be adjusted in a
similar manner to achieve accuracy.
When the fence is tight to the saw blade and the left cursor is at ‘0’, the rear
fence should be squared with the front fence.
At this point, lock the fence down by pushing down on the fence lock lever.

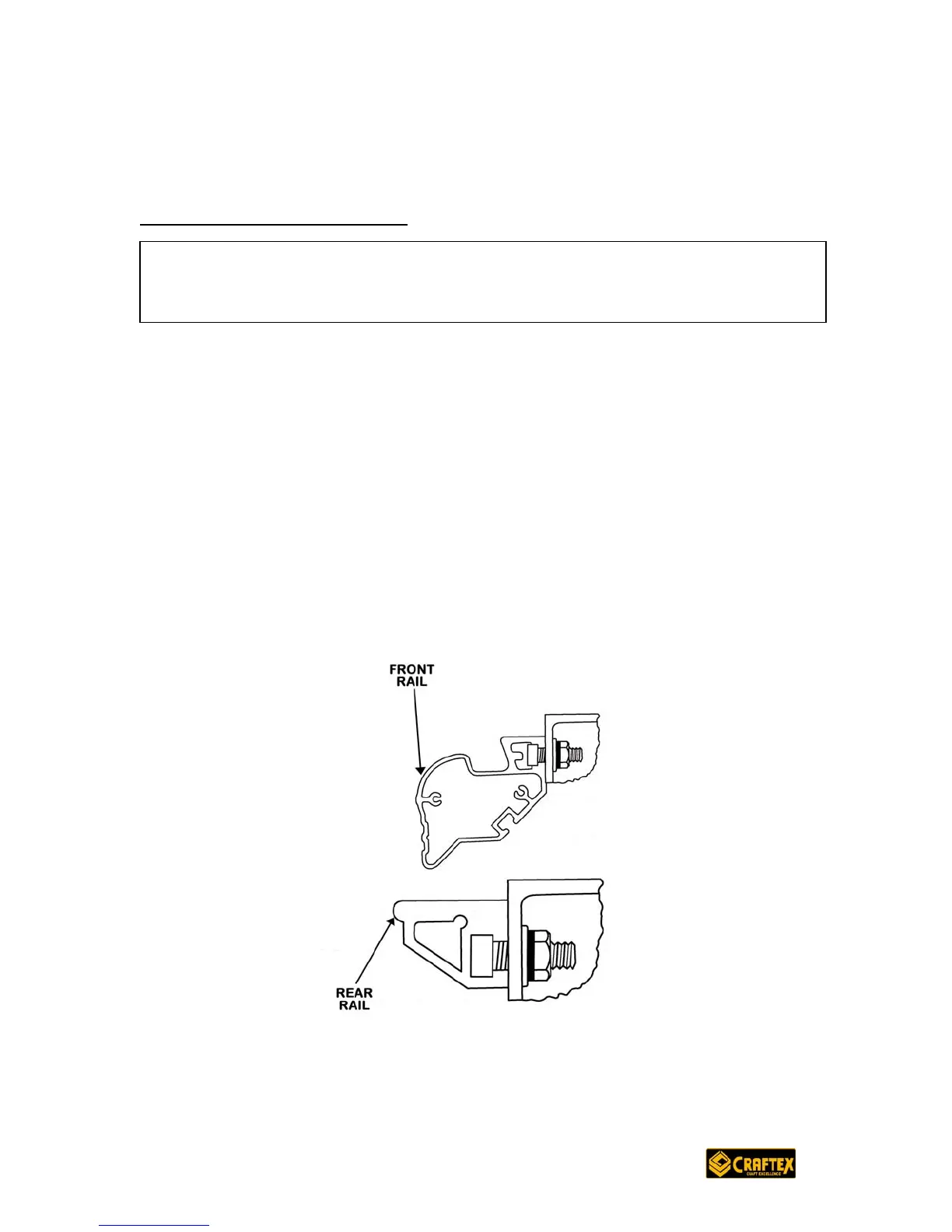

See Figure 10
Now you can tighten firmly all loose nuts supporting the front and rear fence rails
including the tool storage brackets on the side of the machine.
Adjusting the Front & Back Rails
NOTE – The front & back rails MUST be adjusted to with the saw blade. If not
done properly, this may cause kickback or binding and could result in serious
personal injury.
