ASSEMBLY
Installing the Belt Guard
Locate the following from the loose parts
1 – Belt Guard
4 – Flat Washers (M5.3 x 12 x 1)
4 – Flanged Hex Nuts (M5 x .8)
Lower the blade by turning the blade height hand wheel in a counterclockwise
direction and remove the belt. Install a flat washer on each of the four motor
studs. Open the belt guard by pushing down on to the tab lock.
Now, place the belt guard so that the large hole fits around the motor pulley and
insert the motor studs through the small holes of the belt guard. At this point, use
a flanged hex nut and tighten firmly.

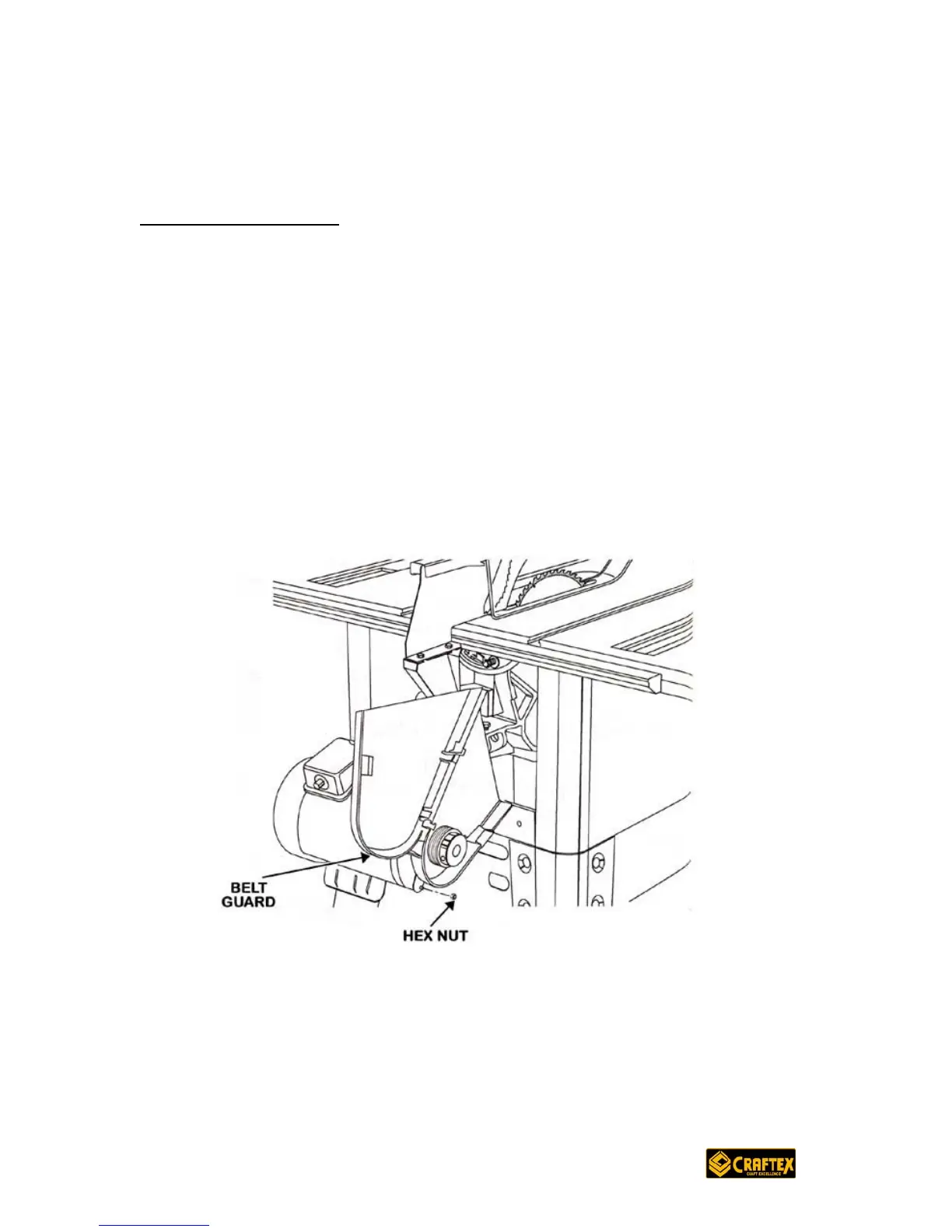

See Figure 17
Figure 17
