ASSEMBLY
Installing the Spacer Bar
Locate the following loose parts
1 – Spacer Bar
2 – Set Screws
2 – Support Plates
Take one of the set screws and thread it into the locking plate.
Place one support plate over each end of the spacer bar and ensure the bent
ends are pointing out.
Slide the support plate into the slots in the end of the back and front rails. Now,
move the spacer bar within 4 ½” from the end of the rear rail and parallel to the
side of the saw table.
If there is a gap between the large diameter of the spacer bar and the inside of
the rear rail, fill the gap with the appropriate number of shims. The shims should
be placed on the spacer bar before the support plate.
Once the correct fit is made, lock the spacer bar by tightening the set screws.

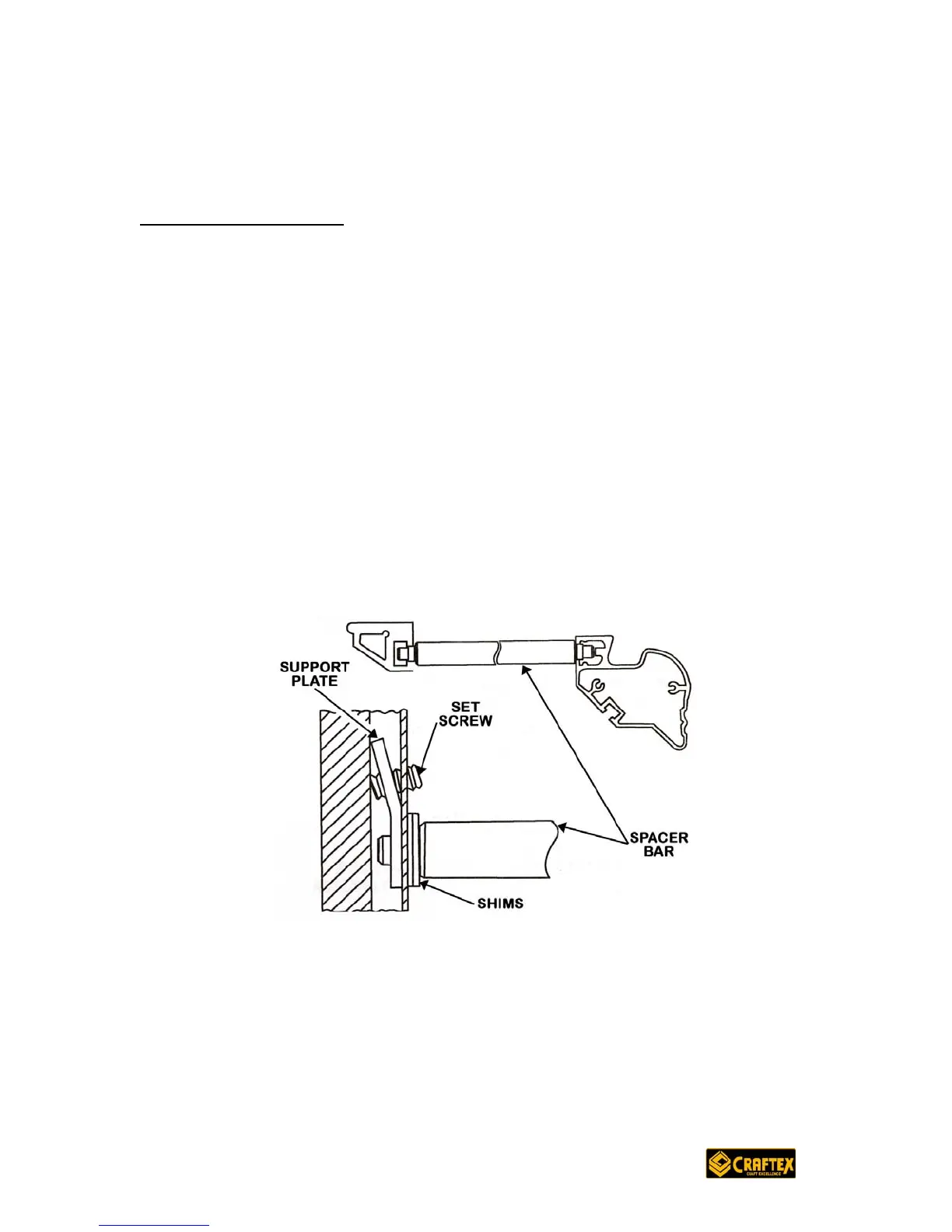

See Figure 13
Figure 13
