ASSEMBLY
Aligning the Blade Guard Assembly and the Blade
First, raise the saw blade by turning the hand wheel in a clockwise direction.
With the use of a combination or framing square, place the square against the

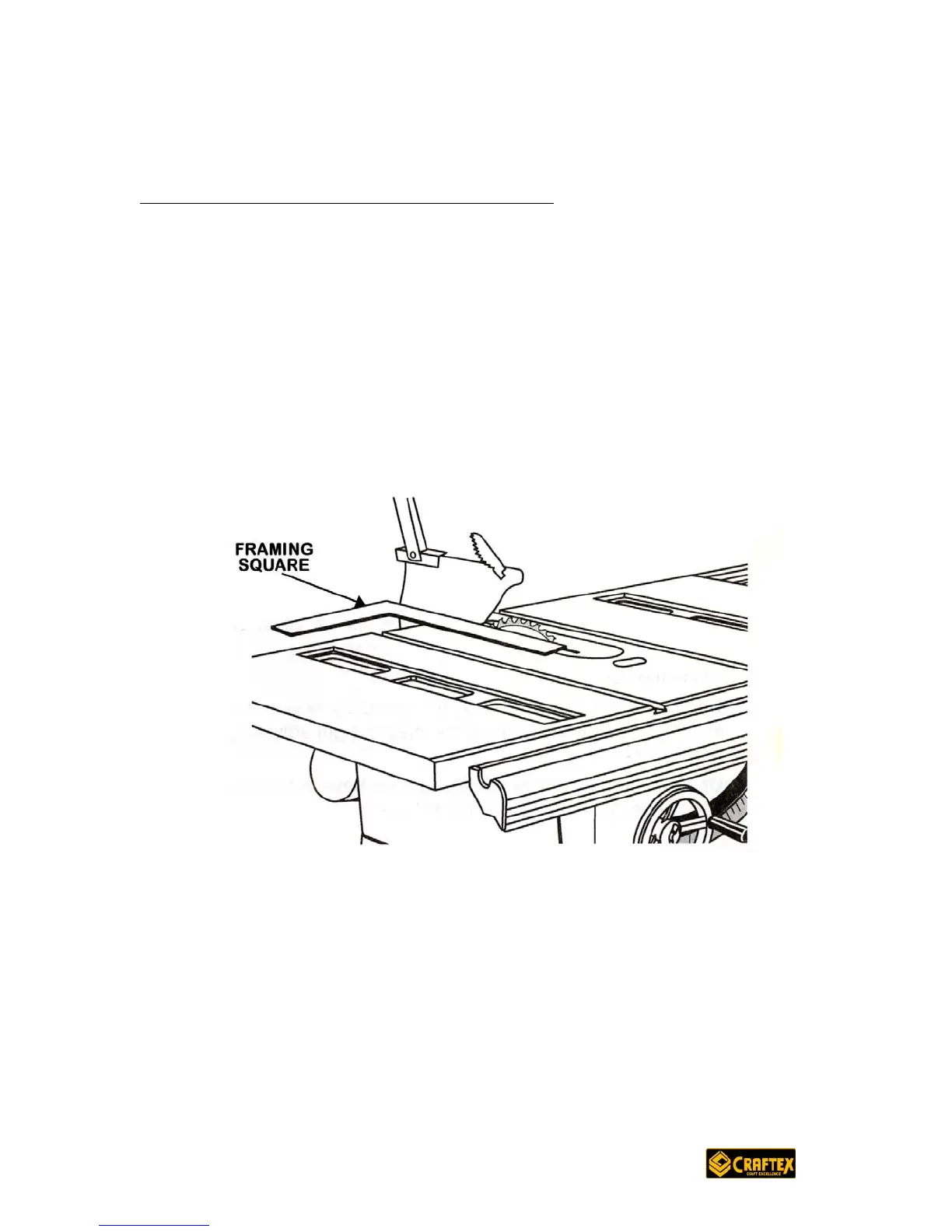

saw blade and the blade guard assembly as show in Figure 15
This should give you an idea of if the blade guard is square to your blade which
is important. If it is not, loosen the thumbscrew in the blade guard support and
move the separator right or left until it touches the blade. Once this is done,
tighten the thumbscrew again.
