Installing the Height Adjusting Hand wheel
First, remove the blade height lock knob by turning it counterclockwise.
Then, slide the height adjusting hand wheel onto the rod and against the lock
tube.
Last, secure the height adjustment hand wheel by reinstalling the blade height
lock knob.

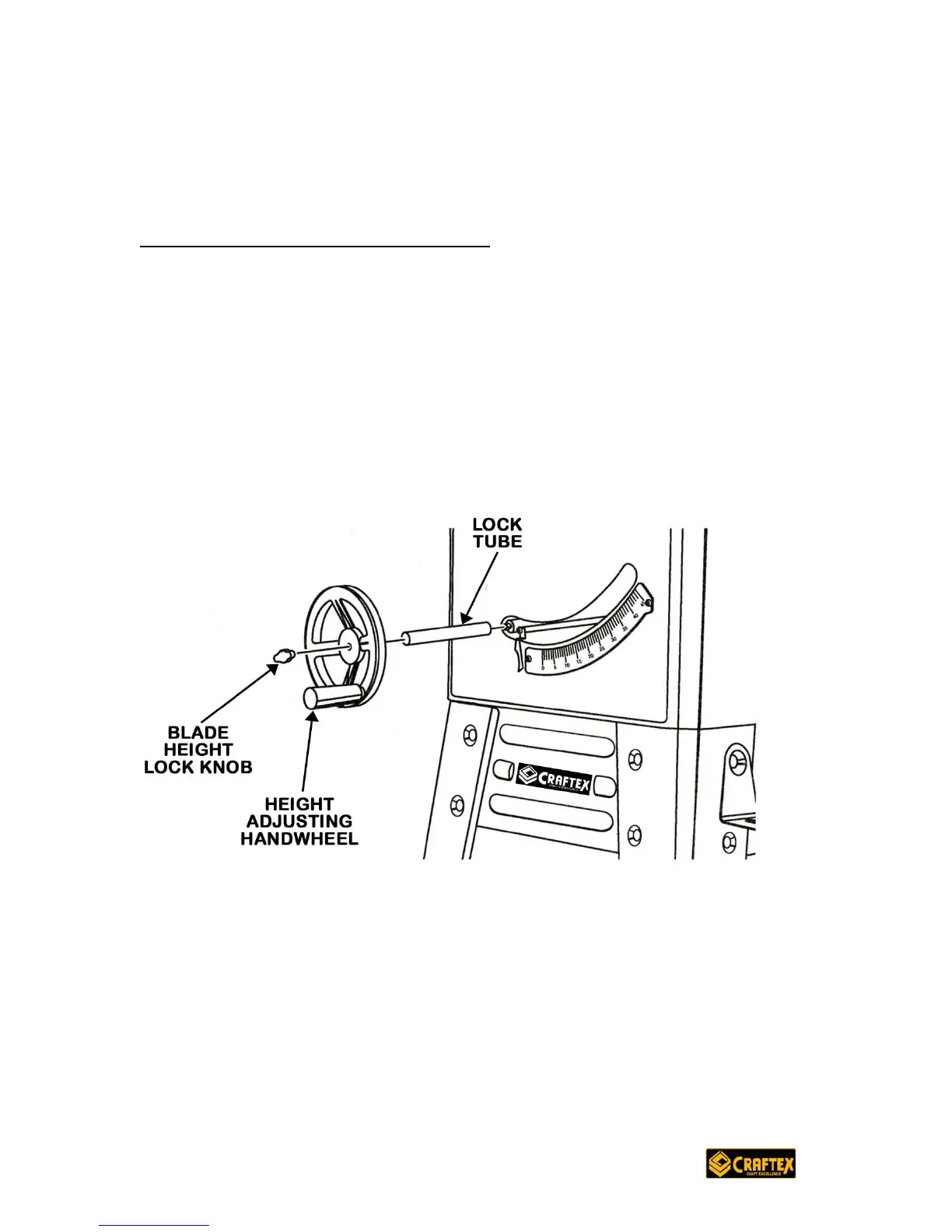

See Figure 6
Figure 6
