ASSEMBLY
Turn the saw table upside down as show in Figure 3
Mounting the table saw to the stand
Remove the following hardware from the hardware package and layout for use.
8 Flanged Hex Nuts (5/16-18)
8 Carriage Bolts (5/16 -18 x 5/8”)
Be sure to place the saw on a flat, level and smooth surface. Using a sheet of
cardboard under the saw is recommended.
Place the assembled leg stand on the table saw base. Align the holes with the
holes of the legs. (The Craftex logo denotes the front of the saw and this must be
used as the front face.)
See Figure 3
WARNING – DO NOT lift this saw without the help of another person. Hold the saw with a firm
grip and close to your body to ensure that you or the saw does not slip while being handled.
Be as careful as possible to prevent back injury.

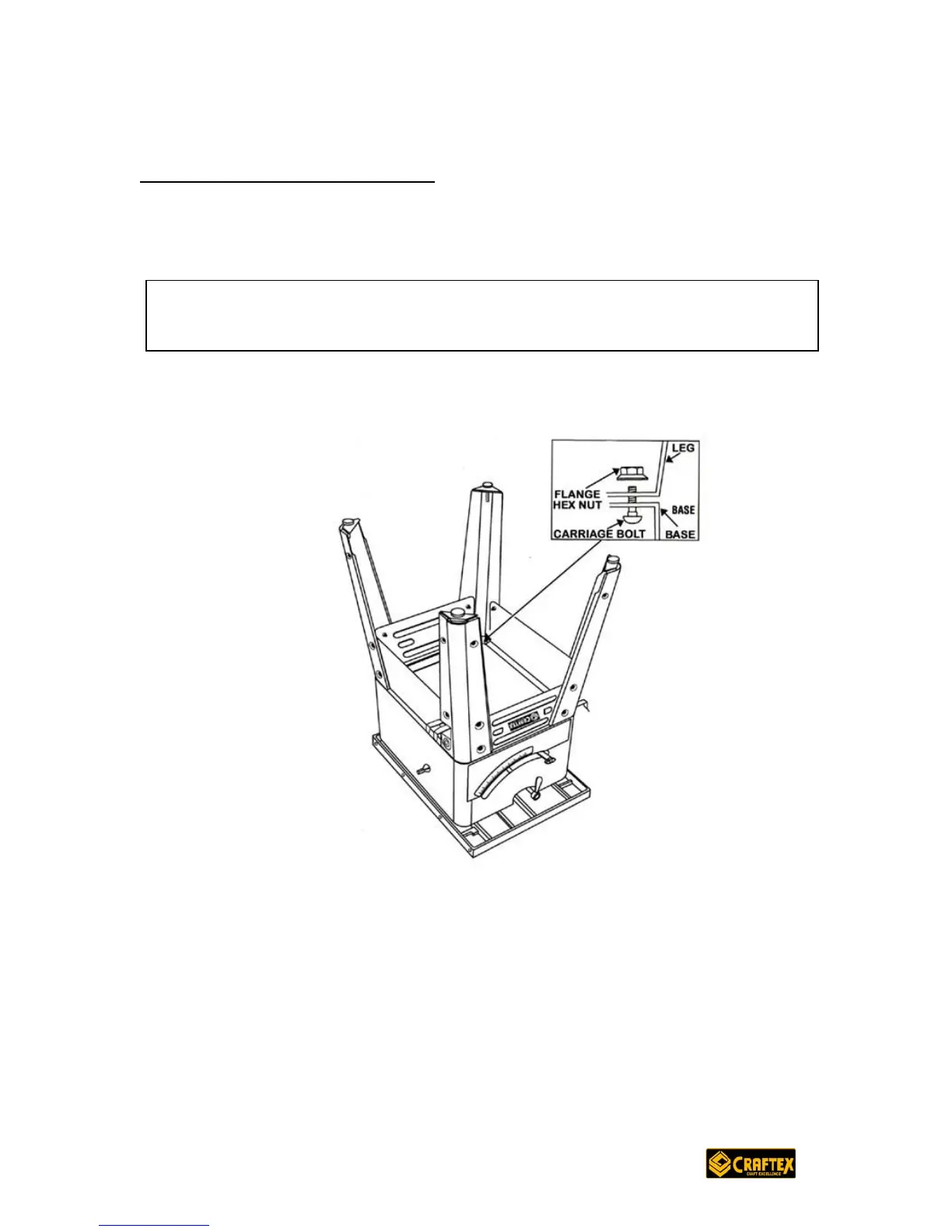

Figure 3
To Next Page
