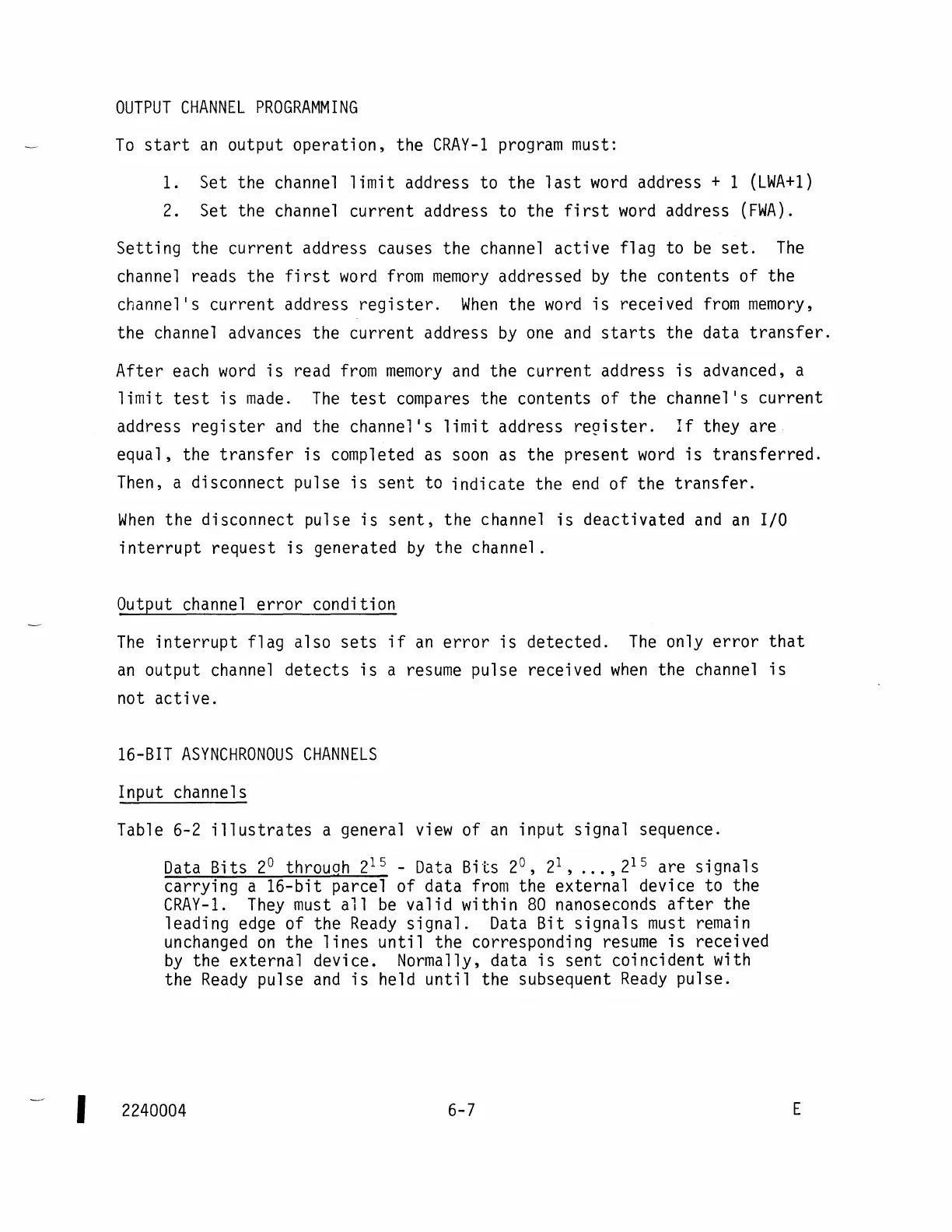

I
OUTPUT
CHANNEL
PROGRAMMING
To
start
an
output operation, the
CRAY-l
program
must:
1. Set the channel
limit
address to the
last
word
address + 1
(LWA+l)
2.
Set the channel
current
address to the
first
word
address
(FWA).
Setting
the
current
address causes the channel
active
flag to
be
set.
The
channel reads the
first
word
from
memory
addressed
by
the contents of the
channel
IS
current
address
register.
When
the
word
is
received
from
memory,
the channel advances the
current
address
by
one
and
starts
the data
transfer.
After each
word
is
read
from
memory
and
the
current
address
is
advanced, a
limit
test
is
made.
The
test
compares
the contents of the channel
IS
current
address
register
and
the channel
IS
limit
address
register.
If
they are
equal, the
transfer
is
completed
as
soon
as the present
word
is
transferred.
Then,
a disconnect pulse
is
sent to
indicate
the
end
of the
transfer.
When
the disconnect pulse
is
sent,
the channel
is
deactivated
and
an
I/O
interrupt
request
is
generated
by
the channel.
Output channel
error
condition
The
interrupt
flag also
sets
if
an
error
is
detected.
The
only
error
that
an
output channel
detects
is
a
resume
pulse received
when
the channel
is
not
active.
16-BIT
ASYNCHRONOUS
CHANNELS
Input channels
Table 6-2
illustrates
a general
view
of
an
input signal sequence.
Data
Bits
throuoh 2
15
-
Data
Bits
2°,2
1
,
•••
,2
15
are signals
carrying a
16-bit
parcel of data
from
the external device to the
CRAY-l.
They
must
all
be
valid within
80
nanoseconds
after
the
leading
edge
of the
Ready
signal.
Data
Bit
signals
must
remain
unchanged
on
the
lines
until
the corresponding
resume
is
received
by
the external device. Normally, data
is
sent coincident with
the
Ready
pulse
and
is
held
until
the subsequent
Ready
pulse.
2240004
6-7
