Product Manual Doc. 7696D DGE-100 and DM-DGE-200-C 51
Test Patterns

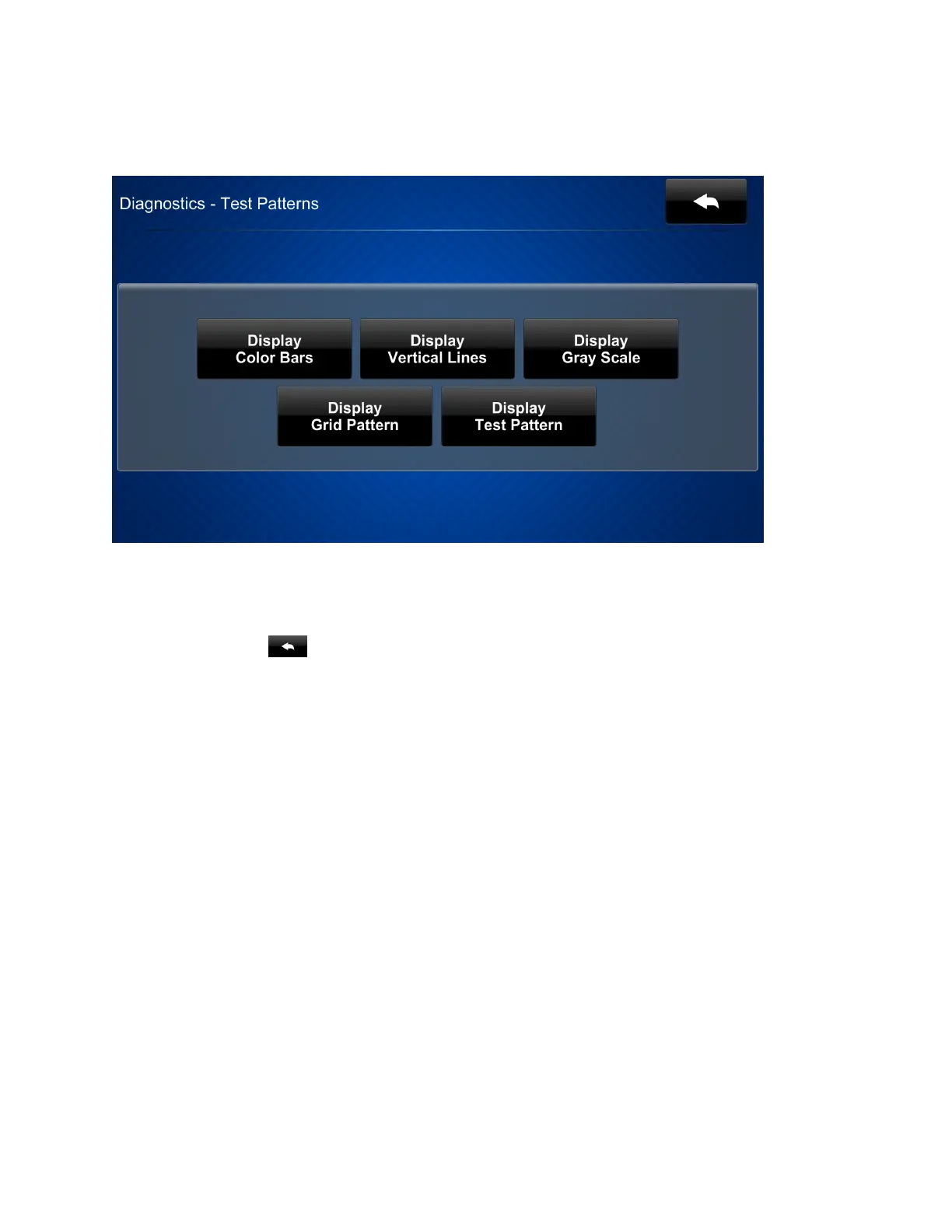

Tap Test Patterns on the Diagnostics screen to display the Diagnostics - Test Patterns screen.
Use the Diagnostics - Test Patterns screen to display any of the available test patterns on the
connected touch screen display. Tap one of the buttons on the screen to display its respective
test pattern.
Tap the back button to return to the Diagnostics screen.
