60 • DGE-100 and DM-DGE-200-C Product Manual — Doc. 7696D

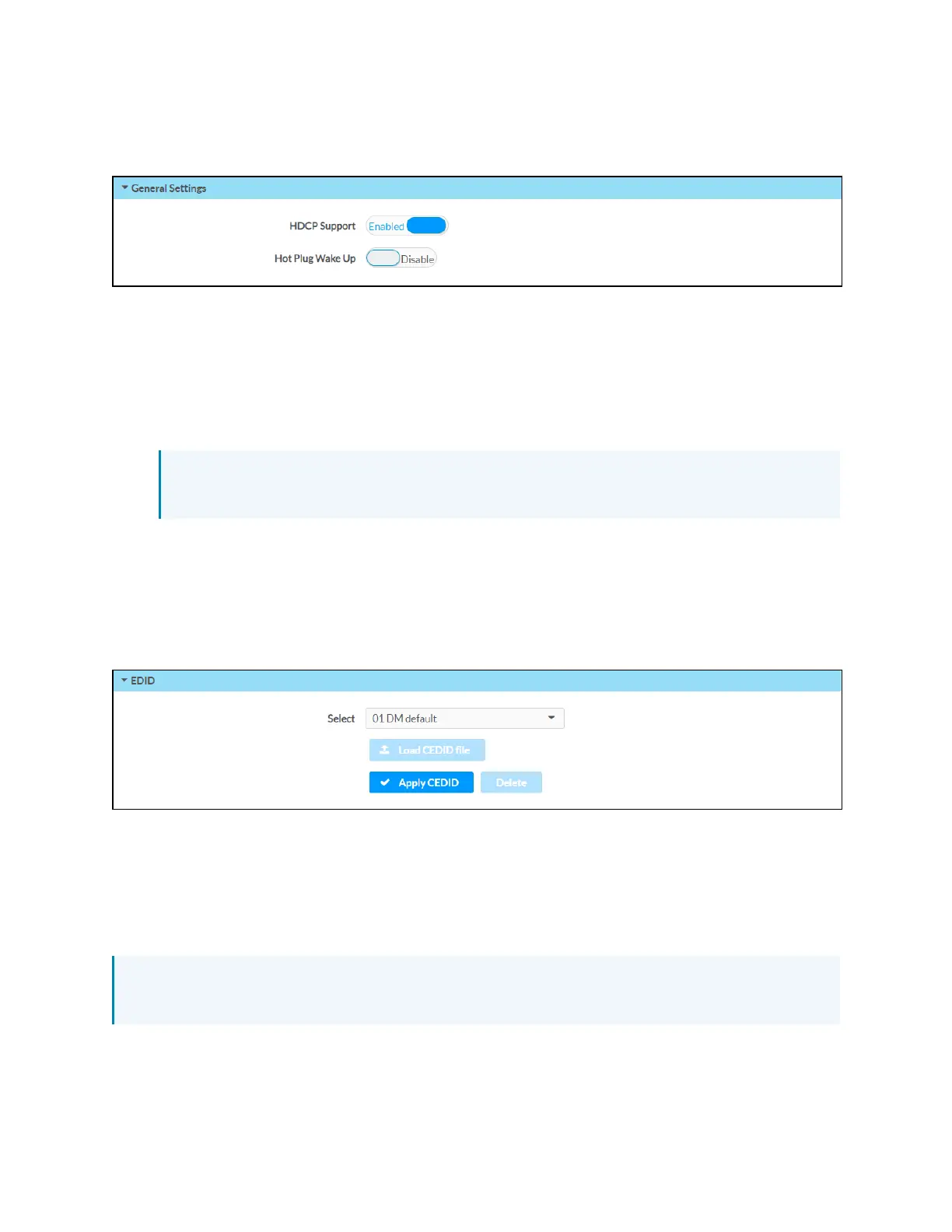

General Settings
Expand the General Settings accordion to configure general settings for the HDMIinput.
l
HDCPSupport:Turn on the toggle to turn on HDCP(high-bandwidth digital content
protection)support for the HDMIinput.
When HDCP Support is turned on, source signals that require HDCP compliance are
allowed to pass through to the display that is connected to the HDMI output. When HDCP
Support is turned off, source signals that require HDCP compliance are not allowed to
pass through to the connected display.
NOTE:When HDCPSupport is turned on, the connected display must also be HDCP
compliant.
l
Hot Plug Wake Up:Turn on the toggle to have the display wake when a source is plugged
into the HDMIinput while the DGEis running.
EDID (HDMIInput)
Expand the EDID accordion to configure EDID (extended display identification data) settings for
the HDMIinput.
EDID is a data structure provided by a digital display to describe its capabilities for a video
source (such as a graphics card or a set-top box). EDID allows a source device to identify the
types of monitors that are connected to it.
Use the Select drop-down menu to select an EDID profile for the HDMI input, and then select ✓
Apply CEDID. Select Delete to delete the selected EDID profile.
NOTE: Only devices that use the selected EDID profile are allowed to send signals through
the DGE.
If the desired EDID profile is not listed, a custom EDID (CEDID)profile may be loaded onto the
device.
