Product Manual — Doc. 7696D DGE-100 and DM-DGE-200-C • 61

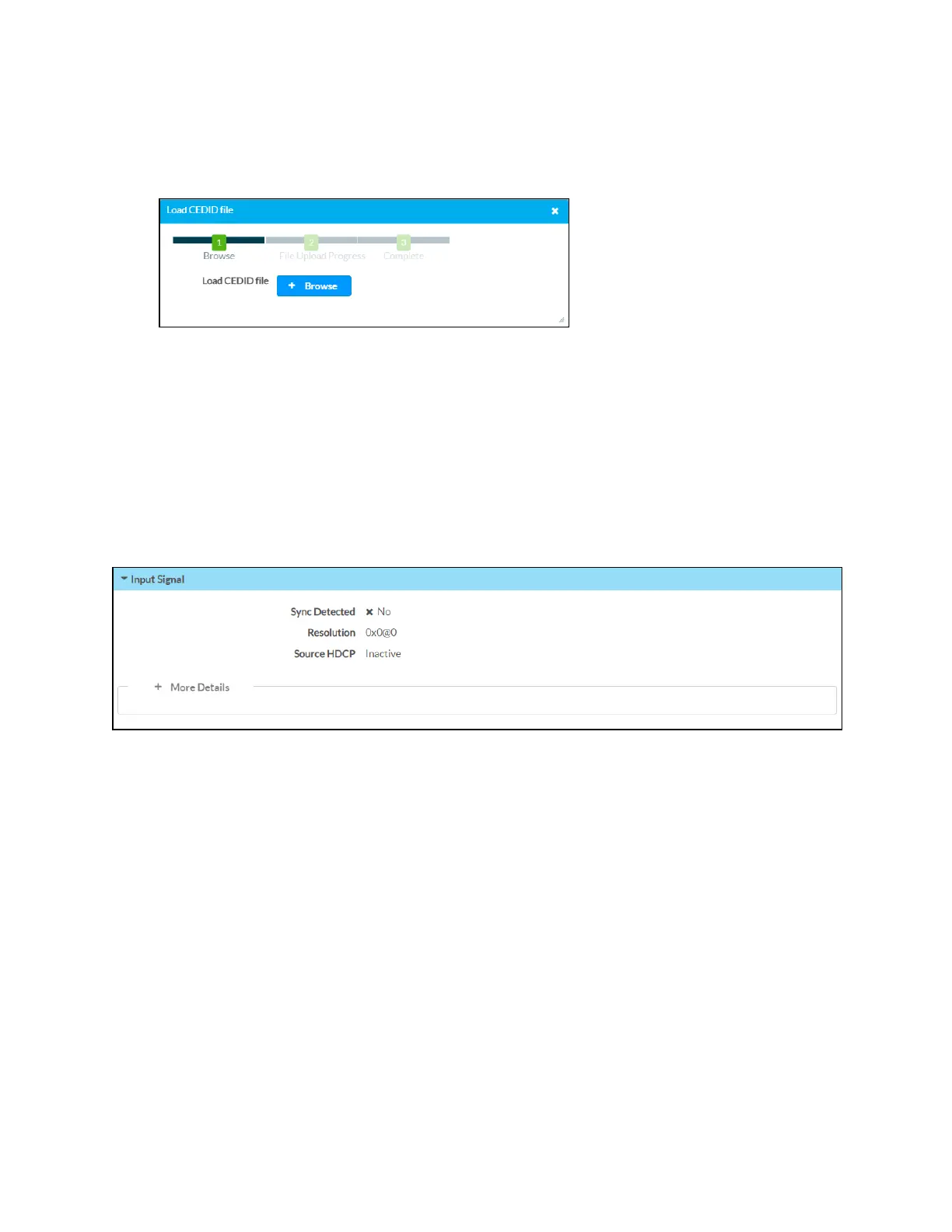

To load a CEDID profile:
1. Select Custom from the Select drop-down menu.
2. Select Load CEDIDFile. The Load CEDIDdialog box is displayed.
3. Select +Browse, and then navigate to the CEDIDfile on the host computer.
4. Select the CEDID file, and then select Open.
5. Select Send EDIDto load the CEDIDfile to the DGE. The upload progress is shown in the
dialog box.
6. Once the DGEhas completed the upload, select OK.
Input Signal (HDMIInput)
Expand the Input Signal accordion to view the status of the input signal connected to the
HDMIinput (if one is present).
l
Sync Detected:Reports whether the HDMIinput signal is synced to the DGE.
l
Resolution:The resolution of theHDMIinput signal.
l
Source HDCP:Reports whether HDCPis active or inactive on the HDMIinput signal.
Select + More Details to display an expanded section that shows additional information about
the HDMIinput signal. If + More Details is selected, select - Less Details to collapse the section.
